How to choose suitable grounding screw for your solar panel ground mounting systems

July 23 , 2021

Grounding screw is usually used on solar ground mount systems. How to choose the most suitable type of ground screw for your project? It will depend on the site of the installation.

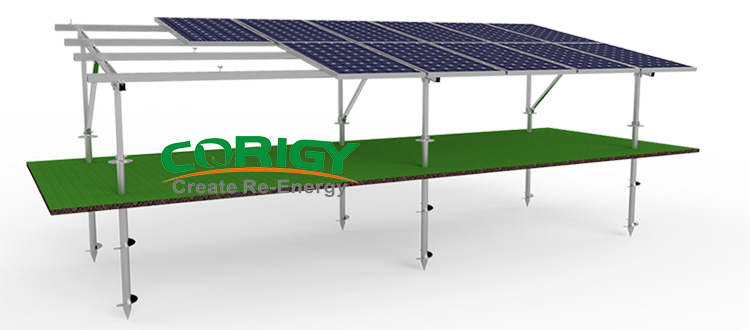

solar ground mount systems

Soil type is a decisive factor in determining how to choose a grounding pile. Below are some tips for you.

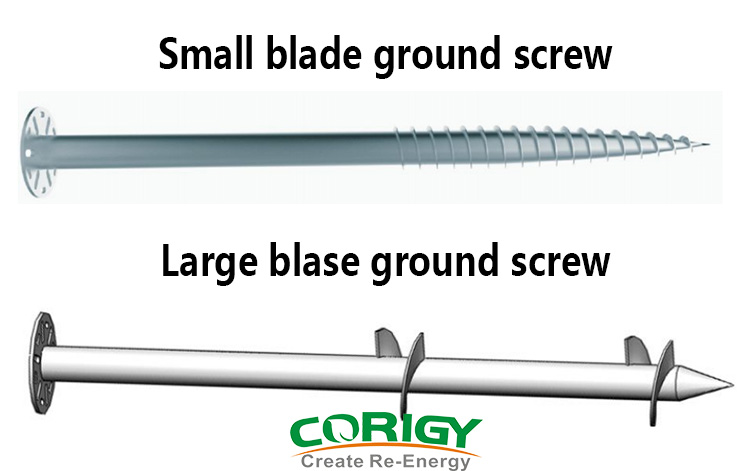

Grounding screw

1. Clyay soil

For Flowing plastic soil (More water than flexible soil,btween solid and fluid,shape to be changed under), large blade ground screw with over 1600 length is most suitable.

For Flexiable soil (More water than plastic soil,big change on shape with pinching but no fragmentation), small blade ground screw with 1800 length or large blade ground screw with 1600 length is recommended.

For Hard plastic soil (Less water,to be crushed or powder with pinching), you can choose small blade ground screw with over 1600 length.

Flowing plastic soil


2. Silt soil, small blade ground screw with 1800 length or large blade ground screw with 1600 length is an idea one.

small blade ground screw


3. Sandy soil, small blade ground screw with over1800 length or large blade ground screw with over 1600 length can be used

small blade ground screw


4. Gravelly soil, small blade ground screw with over 1200 length is widely used.

Gravelly soil

For more soil type, welcome to consult us.
