Brand:
CORIGY SOLARItem NO.:
TRH-01Payment:
T/T, L/C, O/A, D/PProduct Origin:
CHINAShipping Port:
XIAMENLead Time:
Depends on project time or receipt time
Product Name
Mount Location
Sloped Roof
Mount Base
Arched ceramic tile roof
Mount Angle
Parallel to the rooftop
Wind Load
60m/s
Snow Load
1.6KN/m2
Applicable Solar Panels
Framed Panels & Frameless Panels
Solar Panel Layout
Horizontal Panel Installation & Vertical Panel Installation
Design Standard
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
Rack Material
Al6005-T5 (Surface Anodic Oxidation)
Fastener Material
SUS304/SUS410
Mounting Accessories Material
Al6005-T5 (Surface Anodic Oxidation)
Column color
Natural Silver or According to Customer
Warranty Period
10 years
Service Life
25 years
Loading Port
Xiamen Port,China

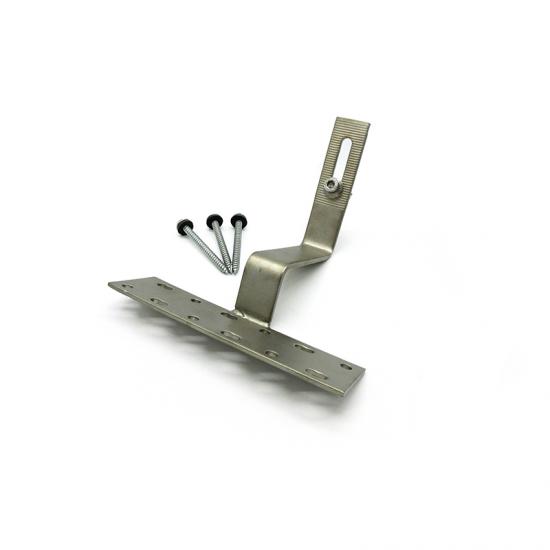

Stainless Steel Solar Panel Mounting Bracket Slate Roof Hook
Advantages:
1.Allow installation at any point on the seam.
2.Can be adjusted even after accessories have been installed.
3.There are many kinds of tile roof bracket fixtures, suitable for various tile roof types
4.The fixture structure is simple and easy to install.
5.High-quality after-sales service to solve your worries.
6.CORIGY SOLAR Solar Kit is fully assembled ready to be installed.

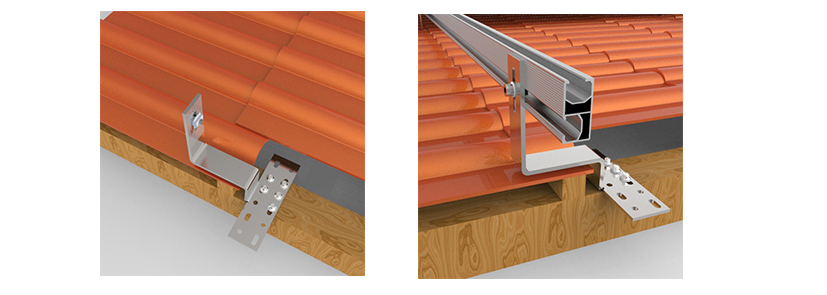

First fix the fixing device on the corresponding tile roof,and then lock the track
According to different roof shapes, choose the matching photovoltaic tile roof hook
Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
