Tile Roof Mounting System

/Corigy Stainless Steel Solar Panel Mounting Brackets Slate Roof Hook

Corigy Stainless Steel Solar Panel Mounting Brackets Slate Roof Hook

Solar roof hooks typically consist of a metal hook or bracket that is attached to the roof structure, such as rafters or trusses. The hook is designed to fit over the edge of the solar panel frame, allowing it to be fastened securely in place. The hook is then anchored to the roof using bolts, screws, or other appropriate fasteners.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    TRH-01
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Stainless Steel Solar Panel Mounting Brackets Slate Roof Hook

Solar roof hooks come in different shapes and designs to accommodate various roof types and materials. They are designed to provide a strong and reliable attachment point for solar panel mounting rails or brackets. The hook is usually fastened to the roof's structural supports, such as rafters or battens, using screws or other appropriate fasteners.

harvey tiles solar roof hooks

Product Name

Stainless Steel Solar Panel Mounting Bracket Slate Roof Hook

Mount Location

Sloped Roof

Mount Base

Arched ceramic tile roof

Mount Angle

Parallel to the rooftop

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China


solar mounting bracket accessories

How do you attach solar panels to a slate roof?

1. Assess the roof condition: Check the condition of your slate roof to ensure it's in good shape and can support the additional weight of solar panels. If any repairs or maintenance are needed, address them before installing the panels.
2. Use suitable mounting equipment: Select a quality solar panel mounting system designed specifically for slate roofs. There are various options available, such as brackets that fit between slates or hooks that slide under the slates. Consult with the manufacturer or installer to determine the best solution for your roof type.
3. Attach mounting brackets or rails: Install the mounting brackets or rails onto the roof using the appropriate fasteners. Ensure that the fasteners penetrate the underlying structure of the roof, such as rafters or battens, to provide a secure attachment.

asphalt shingle roof solar hook

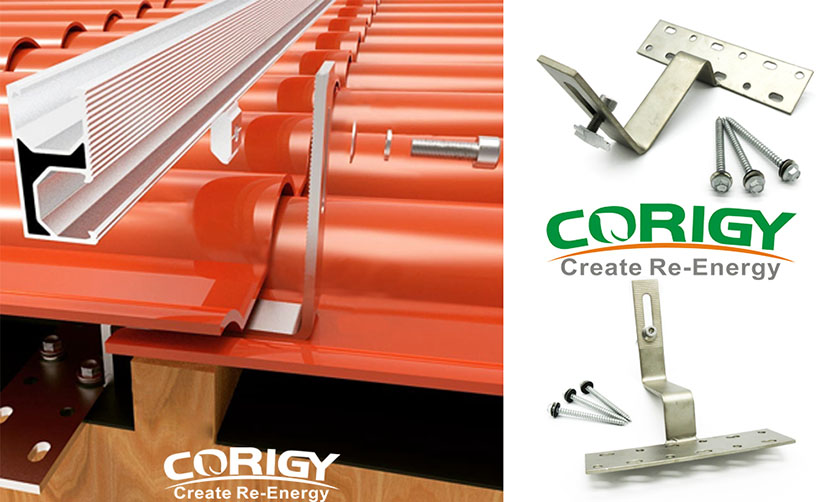

First fix the fixing device on the corresponding tile roof,and then lock the track

slate roof solar hook installation


solar pv bracket holder solar hook

slate roof pv module solar hook

According to different roof shapes, choose the matching photovoltaic tile roof hook

Slate roof solar hook supplier




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
