How to choose suitable way for solar installation on metal roof

June 09 , 2021

Solar panels can be installed on most types of metal roof. Do you know how to choose suitable way for solar installation on your metal roof? Corigy provides various of metal roof solar mounting systems for you to choose.

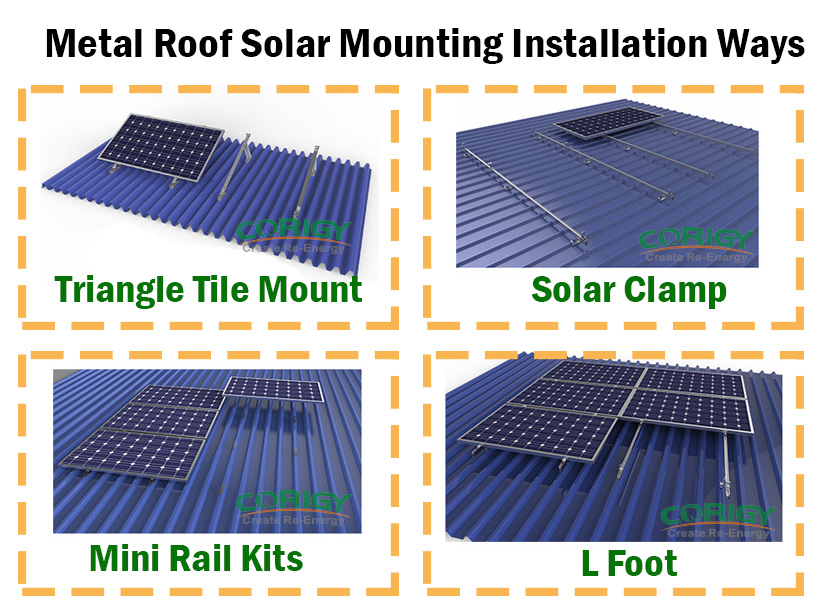

metal roof solar mounting systems

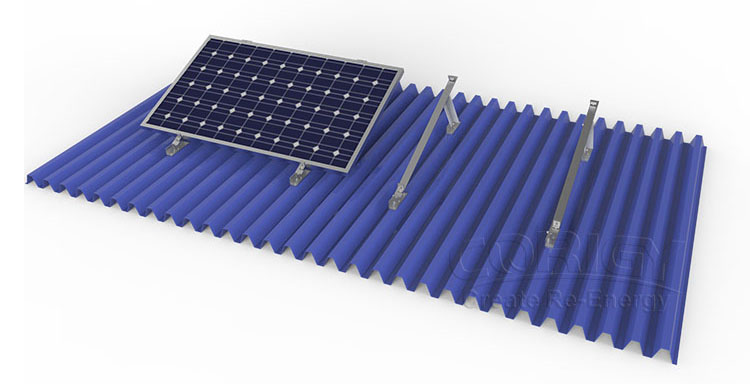

1. Triangle tile mount.

Special design for metal rooftop, it can be adjusted and tilt angles. Flexible suit for different optimized installing direction according to local sun lights. It also conducive to the heat dissipation of the solar panel.

solar panel

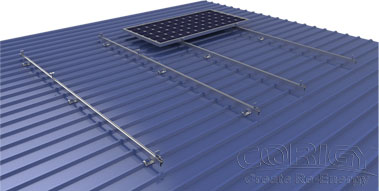

2. Solar clamp:

The clamps are offer a secure fastening without penetrating the roof sheets, ensuring great stability with minimum weight. The variety of system combinations allows it to be connected quickly to all rail components. It can also fix panels directly with solar panel clamps.

solar panel clamps

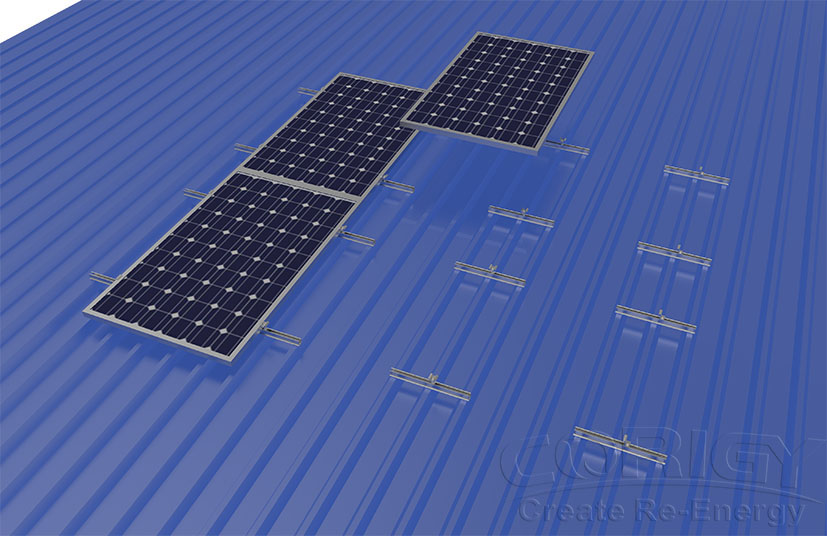

3. Mini rail kits:

Mini Rail Kit is designed for solar installation on trapezoidal metal rooftop. It supports solar panel without aluminum rail. And three parts only, save 40% installation time at least. As a cost-effective mounting solution, the mini-rail kit greatly reduces overall project cost.

Mini Rail Kit

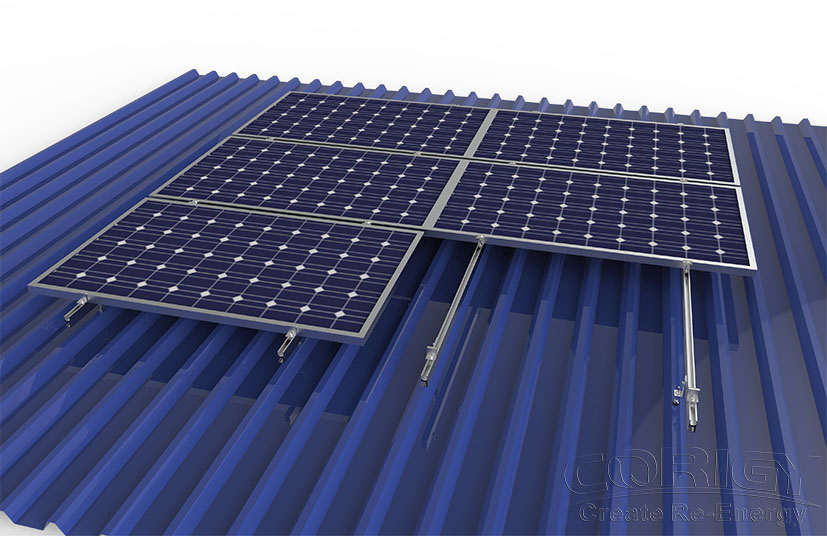

4. L foot:

It can be fixed on metal roof whether wooden rafter or steel purlin. With our waterproof EPDM rubber plates, L foot can be firmly mount to metal roofing. Good performance in severe weathers like snow season or storm days .

L foot
