Corigy Aluminum Non Penetrating Pre-Assemble Easy Install East West Dual Tilt Solar Ballast Racking

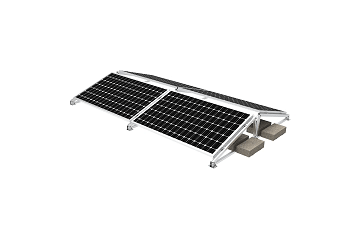

Corigy solar ballast mount is a non-penetrating photovoltaic (PV) racking solution engineered for flat roofs and ground applications. Utilizing the principles of gravity and friction, these systems secure solar panels without the need for roof penetrations. The structure consists of corrosion-resistant aluminum rails or sleds that support the panels, while pre-cast concrete blocks are strategically placed to provide the necessary ballast weight. This weight counteracts wind uplift and structural loads, ensuring system stability while preserving the integrity of the roof membrane and maintaining manufacturer warranties.

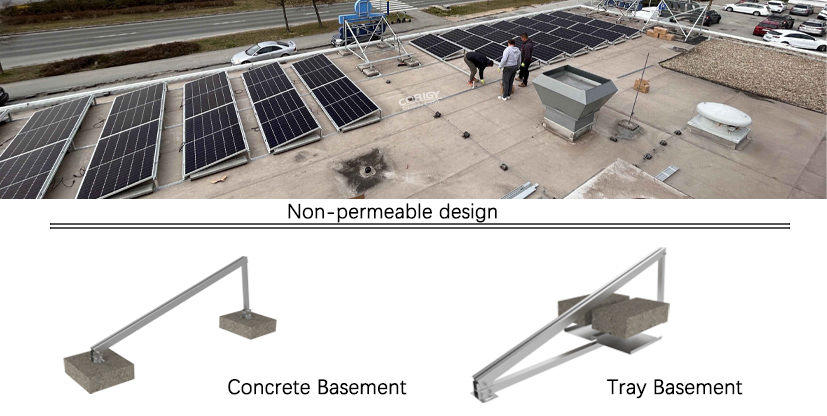

Non-Penetrating Design: Protect the Roof, Preserve the Warranty
The number one concern for any building owner is the integrity of their roof. Our system features a fully ballasted, non-penetrating design that eliminates the need for drilling into the roof membrane. By relying on strategic weight distribution to secure the array, we completely remove the risk of water ingress and thermal bridging. This preserves the existing roof warranty and provides building owners with absolute peace of mind, making your proposal the safer, more responsible choice.

Pr-Assembled for Speed: Cut Labor Costs, Accelerate Timelines
We understand that on a job site, time is literally money. Unlike conventional systems that arrive as a box of loose parts requiring complex on-site assembly, our solution is highly pre-assembled prior to delivery. This "click-and-place" design drastically reduces the number of fasteners and installation steps. Your crew can spend less time deciphering instructions and fumbling with small parts, and more time actually mounting panels. This translates to a significant reduction in labor hours and overall project costs, allowing you to take on more projects with the same workforce.

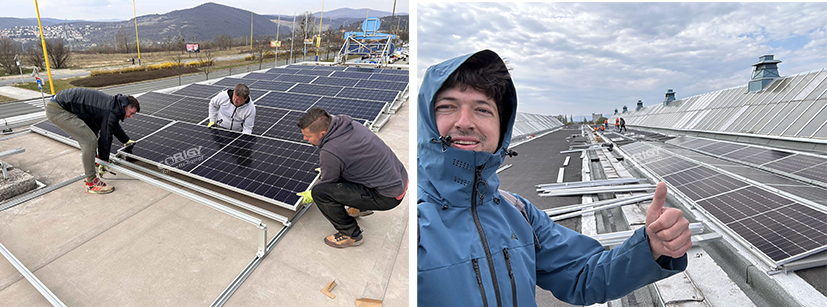

Optimized Energy Yield: Capture Sunlight from Every Angle

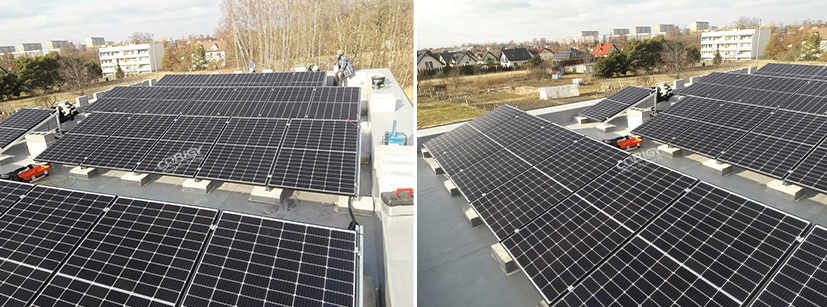

A fixed-tilt system shouldn't mean fixed limitations. To truly maximize return on investment, a solar array must capture light efficiently throughout the day and across seasons. Our mounting structure is designed to optimize panel orientation, effectively harnessing sunlight from both north-south and east-west axes. This intelligent layout minimizes inter-row shading and maximizes the power generation per square meter of roof space, ensuring your clients achieve the highest possible energy yield from their installation.

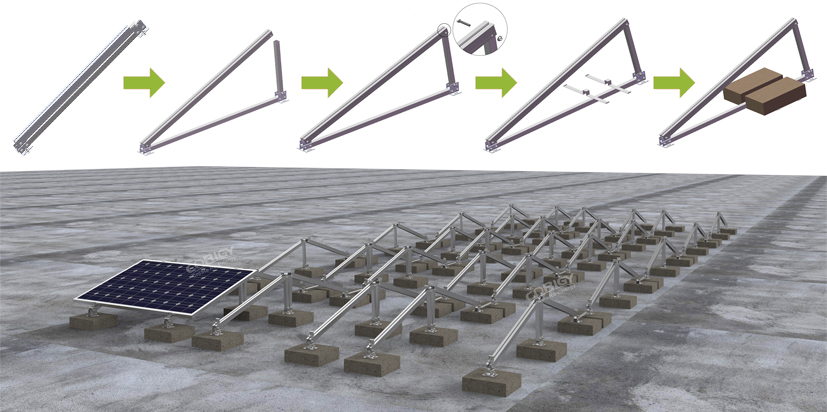

How to Install PV Panel on the Flat Roof With Drill the Hole

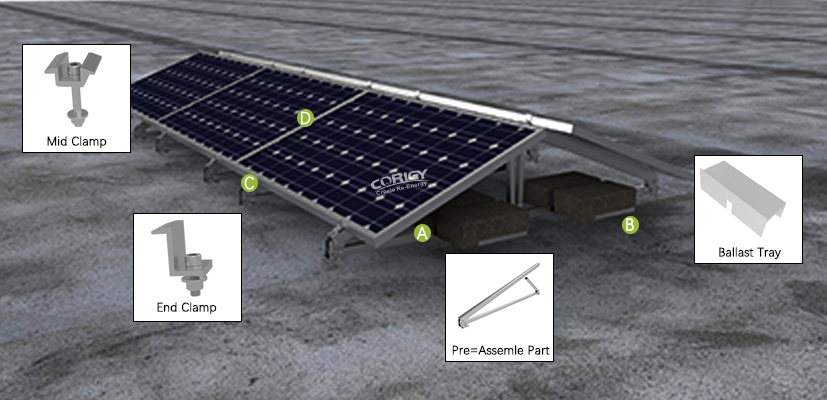

Our bracket is extremely easy to install. Simply tighten the single screw and attach the weighted cement block.Faster installation & Fewer tools & No lost parts

If you are not sure about the weight of the cement block should be, Consult Us!

          Reference Technical Drawing                              Installation Guide                                        Product Catalogue

How to Get Your Suitable Technical Drawing

CORIGY's products have been applied to medium to large-scale photovoltaic projects ranging from 15MW to over 810 MW globally. For customer to get their suitable design, we will need you to provide the information below.

1. Dimensions of the panel (Width* Length* Thickness);
2. Layout of the array (How many panels in a line. Portrait install of solar panel or landscape.)
With those two above, our engineer team can calculate how many per-assembled part will needed.
3.  Install Angle (Recommend 5- 15 degrees)
With those two above, our engineer team can calculate how long the leg should be.
5. Max wind speed
6. Max snow load
With those two above, our engineer team can decide the specification of the material to use

Contact us for FREE Drawing, FREE Calculation Report and FREE Quote

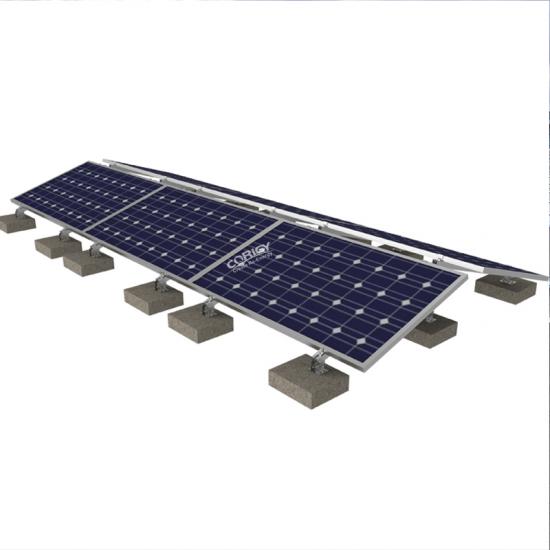

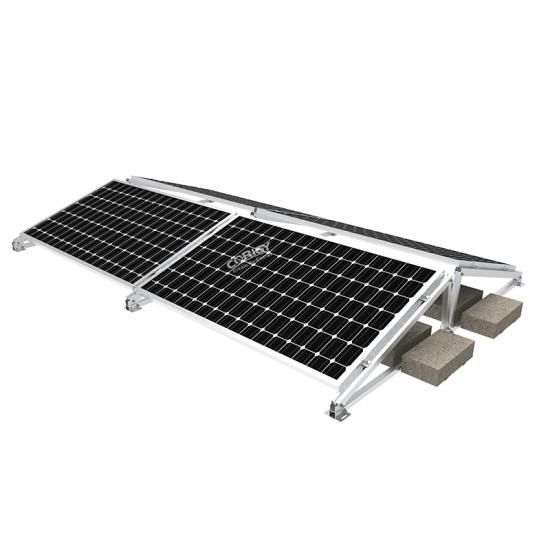

         Plastic Ballast Mount                                        Single Face Ballast Mount                                     New Ballast Mount

(Clicking on the image will direct you to the product page)

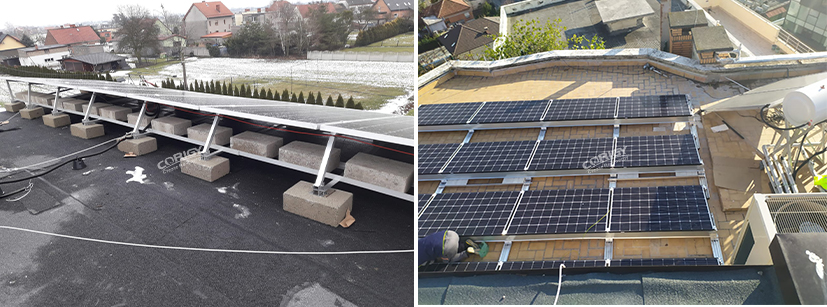

We aim to provide our customers with safe, easy install and economical non-penetrating mounting brackets for flat roof.

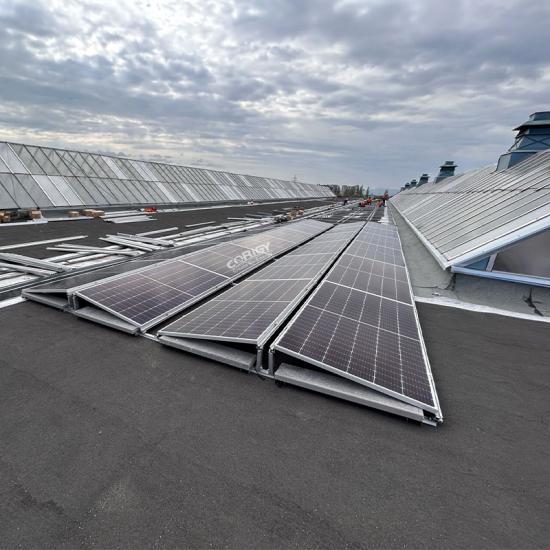

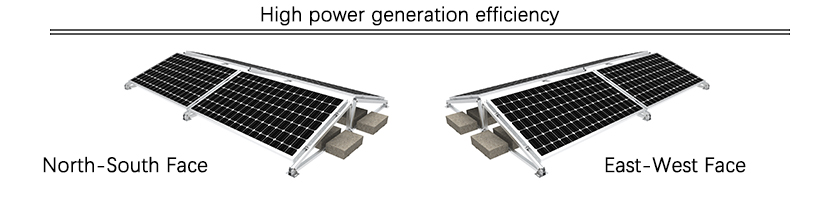

Customer can determine the face of the solar panel by our dual tilt ballast mount.

As a professional manufacturer of solar photovoltaic mounting systems, we understand that proper packaging is essential to ensure product integrity during transit and storage. Our packaging solutions are designed to provide maximum protection while considering environmental sustainability and cost-effectiveness.
We offer three main types of packaging depending on the product type, size, and destination:
1. Steel Pallet (Iron Pallet)
Steel pallets are primarily used for heavy and large structural components such as rails, beams, and purlins. These pallets offer high strength and durability, ensuring that products remain stable and secure during long-distance transportation and repeated handling.

2. Wooden Pallet
For components and accessories, we use high-quality wooden pallets. The wood is carefully selected to ensure load-bearing capacity and resistance to impact. All wooden packaging complies with ISPM 15 standards for international shipments when required.

4. Strapping Belt
Primarily used for packaging steel products. It helps conserve space, enabling a shipping container to accommodate the maximum possible volume of steel.

5. Wooden Case
Custom wooden case is available to ensure components are neatly organized and well-protected. All packaging is designed to optimize container space, reduce the risk of damage, and facilitate easy unloading and installation on-site. We are also happy to customize packaging according to specific customer requirements or project needs.

We offer a comprehensive range of solar mounting solutions to meet

1. Ground Mount Systems – For utility-scale and commercial solar farms;  2. Roof Mount Systems – for both tile, metal, and flat roofs;

3. Solar Carports – Maximizing parking space;     4. Balcony PV Mounts – Compact systems for urban residential use;

5. Solar Fencing – Dual-purpose security and energy generation;     6. Mounting Accessories – Rails, clamps, L feet, and hardware

And more...

Corigy Solar driven by automation and precision. Our factory is equipped with state-of-the-art automated production lines that ensure efficiency, consistency, and quality across every product we deliver.

We welcome you to become our distributor.

In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality aluminum alloy (6005-T5) and carbon steel (HDG/ZAM) mounting solutions, allowing customers to choose the optimal material for their project requirements and budget.

Aluminum surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.

ZAM (Zinc-Aluminum-Magnesium) is a next-generation coated steel that delivers exceptional corrosion resistance and self-healing properties.  Under the same coating conditions, ZAM exhibits 10-20 times the corrosion resistance of ordinary hot-dip galvanizing. ZAM also possesses self-healing properties. Over time, coating components dissolve around the cut and punched edges, forming a dense protective film composed of zinc hydroxide, alkaline zinc chloride, and magnesium hydroxide. This protective film has low conductivity and significantly inhibits corrosion on the end face. Because the ZAM coating is very dense and smooth, its surface hardness (140-160 HV) is 2.5 times that of ordinary galvanizing (55-65 HV), giving it excellent scratch resistance. It is suitable for easily scratched or repeatedly rubbed areas during processing. Furthermore, the ZAM surface treatment does not contain trivalent or hexavalent chromium ions, meeting international environmental standards (RoHS), making it an internationally recognized environmentally friendly product.

All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

Corigy Solar's vision is to become a global leader in the renewable energy industry. Since its inception, the company has provided safe, reliable, and cost-effective photovoltaic mounting solutions for photovoltaic projects of all scales all over the world. CONTACT US NOW for your suitale solar mounting systems!
