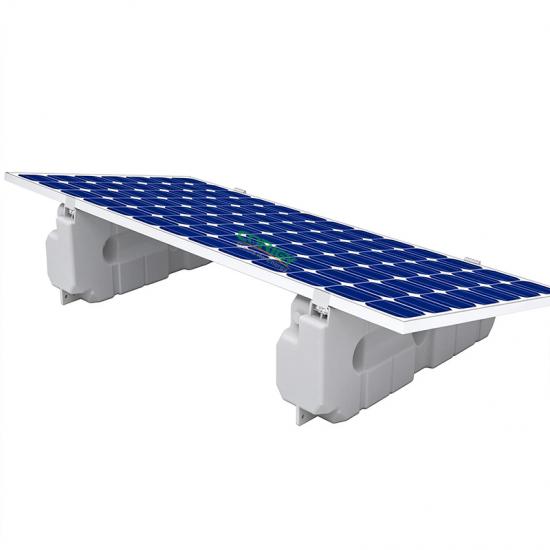

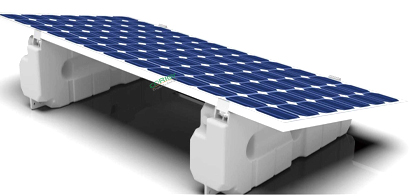

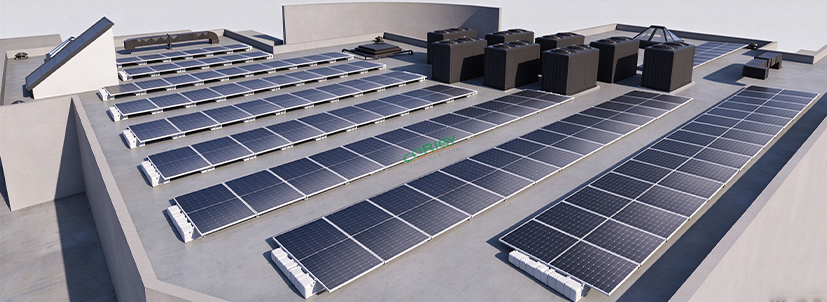

Corigy Non Penetration Water Ballast Solar Panel Support for Concrete Flat Roofs

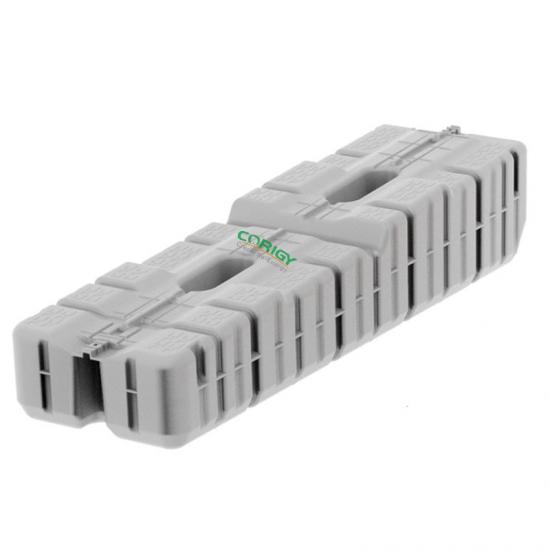

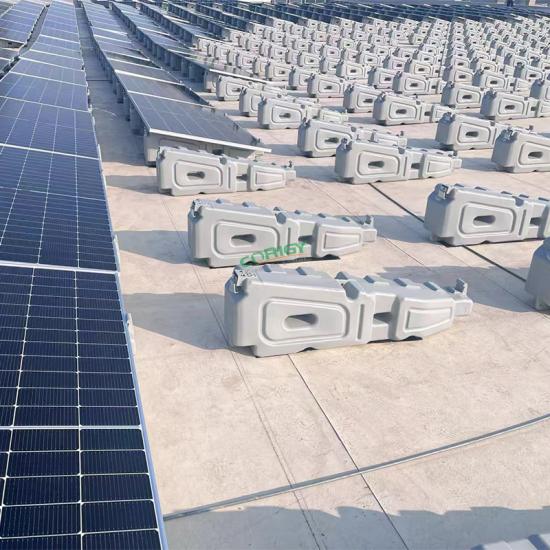

What is Water Ballast Solar Panel Mount

Instead of using heavy concrete blocks or drilling into the roof membrane, water ballast systems are a non-penetrating method for mounting solar panels on flat roofs, using the weight of water-filled containers. This approach is particularly valued because it avoids creating potential leak points.

1. Lower transport cost: Unlike concrete blocks, the empty tanks are very light, making them easy to transport to the roof and maneuver into position before filling.

2. No Roof Penetration: No drilling or screws into the roof membrane, eliminating the risk of leaks and avoiding voided roof warranties.

3. Flexible Ballast: You can fill each tank partially or fully depending on wind-load requirements, roof zones, and structural limits.

4. Faster installation: Modular design, fewer components, and no curing time make installation quicker than many penetrated or concrete-ballast systems.

5. Reusable and relocatable: Drain the water, move the system, and refill it elsewhere. Ideal for rented buildings or temporary installations.

6. Easy decommissioning – At the end of life, drain and remove the system without patching holes or repairing the roof.

7. Environmentally Friendly: Water is free, and the system can be easily drained for decommissioning, leaving no permanent impact.

8. The biggest advantage is usually non-penetrating installation with adjustable, transport-friendly ballast

How to Install HDPE Water Ballast on Flat Roof

Step 1: Ballasted Racking Layout and Placement                                                 Step2: Install the Ballasted Racking

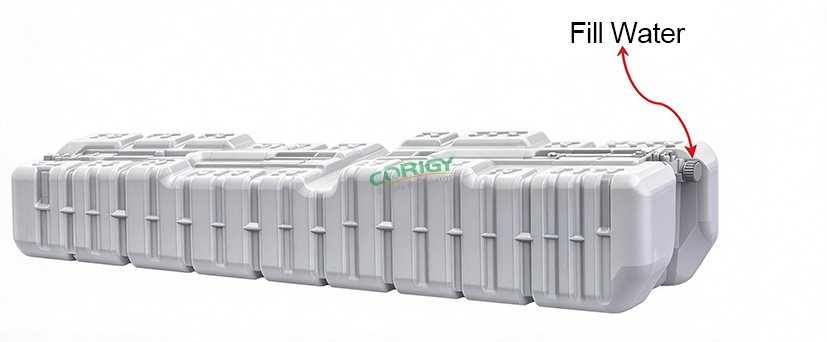

Step3: Fill the Ballasted Racking with Water                                                         Step 4:Tighten the Barrel Lids

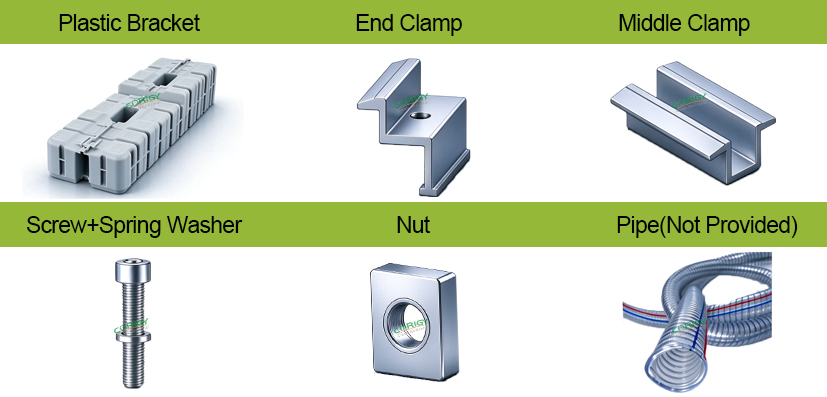

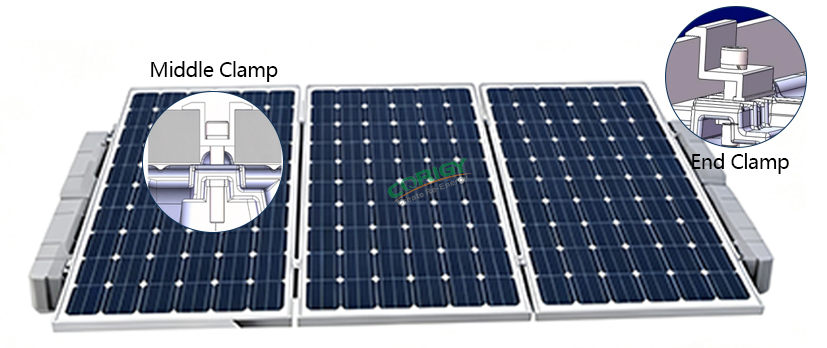

Step 5: Pre-assembly of End Clamps and Fasteners                      Step 6: Pre-assembly of Middle Clamps and Fasteners
Step 7: Tighten the Fasteners

                 Produce Datasheet                                          Installation Guide                                        Product Catalogue

Contact us for FREE Drawing, FREE Calculation Report and FREE Quote

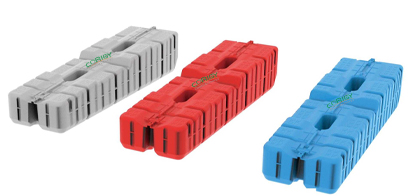

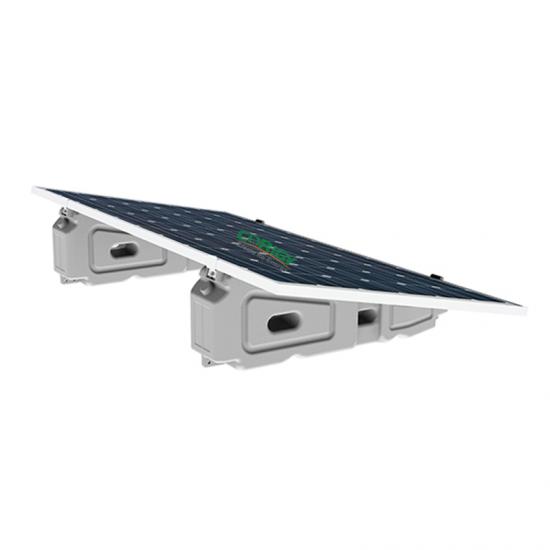

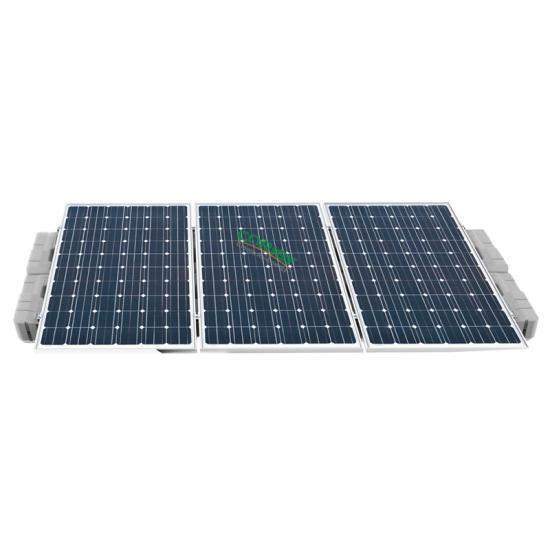

            Plastic Ballast Mount                                    New Ballast Mount                                  Single Face Ballast Mount

We aim to provide our customers with safe, easy install and economical mounting brackets for ground in harsh environments.

As a professional manufacturer of solar photovoltaic mounting systems, we understand that proper packaging is essential to ensure product integrity during transit and storage. Our packaging solutions are designed to provide maximum protection while considering environmental sustainability and cost-effectiveness.
We offer three main types of packaging depending on the product type, size, and destination:
1. Steel Pallet (Iron Pallet)
Steel pallets are primarily used for heavy and large structural components such as rails, beams, and purlins. These pallets offer high strength and durability, ensuring that products remain stable and secure during long-distance transportation and repeated handling.

2. Wooden Pallet
For components and accessories, we use high-quality wooden pallets. The wood is carefully selected to ensure load-bearing capacity and resistance to impact. All wooden packaging complies with ISPM 15 standards for international shipments when required.

4. Strapping Belt
Primarily used for packaging steel products. It helps conserve space, enabling a shipping container to accommodate the maximum possible volume of steel.

5. Wooden Case
Custom wooden case is available to ensure components are neatly organized and well-protected. All packaging is designed to optimize container space, reduce the risk of damage, and facilitate easy unloading and installation on-site. We are also happy to customize packaging according to specific customer requirements or project needs.

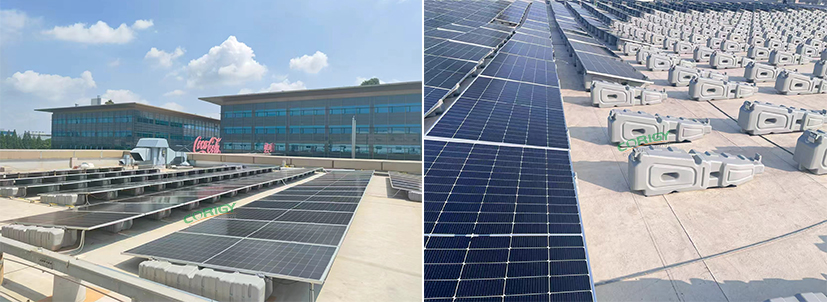

Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.

We offer a comprehensive range of solar mounting solutions to meet

1. Ground Mount Systems – For utility-scale and commercial solar farms;  2. Roof Mount Systems – for both tile, metal, and flat roofs;

3. Solar Carports – Maximizing parking space;     4. Balcony PV Mounts – Compact systems for urban residential use;

5. Solar Fencing – Dual-purpose security and energy generation;     6. Mounting Accessories – Rails, clamps, L feet, and hardware

And more...

Corigy Solar driven by automation and precision. Our factory is equipped with state-of-the-art automated production lines that ensure efficiency, consistency, and quality across every product we deliver.

We welcome you to become our distributor.

In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality aluminum alloy (6005-T5) and carbon steel (HDG/ZAM) mounting solutions, allowing customers to choose the optimal material for their project requirements and budget.

Aluminum surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.

ZAM (Zinc-Aluminum-Magnesium) is a next-generation coated steel that delivers exceptional corrosion resistance and self-healing properties.  Under the same coating conditions, ZAM exhibits 10-20 times the corrosion resistance of ordinary hot-dip galvanizing. ZAM also possesses self-healing properties. Over time, coating components dissolve around the cut and punched edges, forming a dense protective film composed of zinc hydroxide, alkaline zinc chloride, and magnesium hydroxide. This protective film has low conductivity and significantly inhibits corrosion on the end face. Because the ZAM coating is very dense and smooth, its surface hardness (140-160 HV) is 2.5 times that of ordinary galvanizing (55-65 HV), giving it excellent scratch resistance. It is suitable for easily scratched or repeatedly rubbed areas during processing. Furthermore, the ZAM surface treatment does not contain trivalent or hexavalent chromium ions, meeting international environmental standards (RoHS), making it an internationally recognized environmentally friendly product.

All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

Corigy Solar's vision is to become a global leader in the renewable energy industry. Since its inception, the company has provided safe, reliable, and cost-effective photovoltaic mounting solutions for photovoltaic projects of all scales all over the world. CONTACT US NOW for your suitable solar mounting systems!
