Corigy Y Shape Hot Dip Galvanizing Steel Heavy-Duty Solar Carport Structure for Commercial Parking Lots

The signature Y-shaped column design is more than just visually appealing—it's a feat of structural engineering. The bifurcated support creates a stable, balanced foundation for the overhead solar array while minimizing ground footprint. This allows for unobstructed vehicle movement and maximizes available parking space beneath the structure.

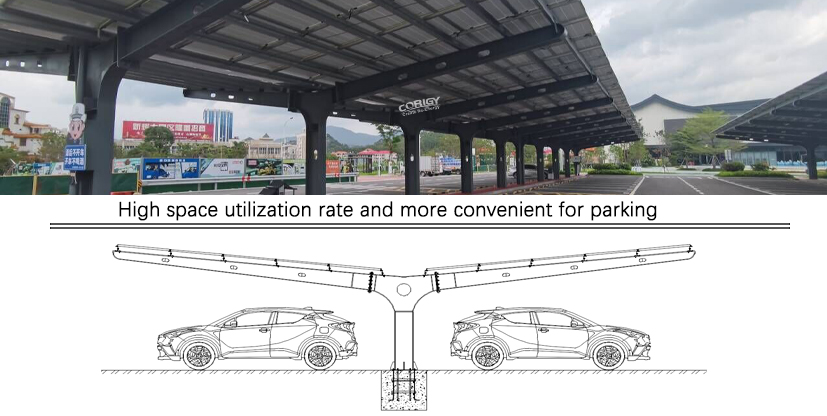

1. Traditional carport columns often create awkward parking layouts, reducing the number of vehicles a site can hold. By utilizing a wider span design and strategic column placement, our system minimizes obstructions. End-users experience more convenient parking with wider turning radii and easier bay access. Whether it is for a shopping mall, an airport, or a corporate campus, our carport ensures you generate maximum power without sacrificing parking capacity.

2. Unlike standard aluminum systems that may flex or require extensive reinforcement, our carport is constructed from high-grade structural steel.This provides three distinct commercial advantages:
①Superior Load Capacity: Engineered to withstand heavy snow loads and high wind speeds, ensuring the safety of the vehicles and panels below.
②Longevity: Hot-dip galvanized steel offers exceptional resistance to corrosion, guaranteeing a service life that matches the performance of the solar modules (25+ years).
③Stability: The rigidity of steel reduces vibration and micro-movement, protecting the integrity of the solar panels over decades of use.

3.  The Y-shape naturally distributes the weight of the panels and the cantilevered roof to the foundation. This design allows for larger, uninterrupted canopy spans, creating a more open and airy feel underneath while maximizing the solar array above.

How to Install Photovoltaic Panel on Corigy Solar Steel Carport

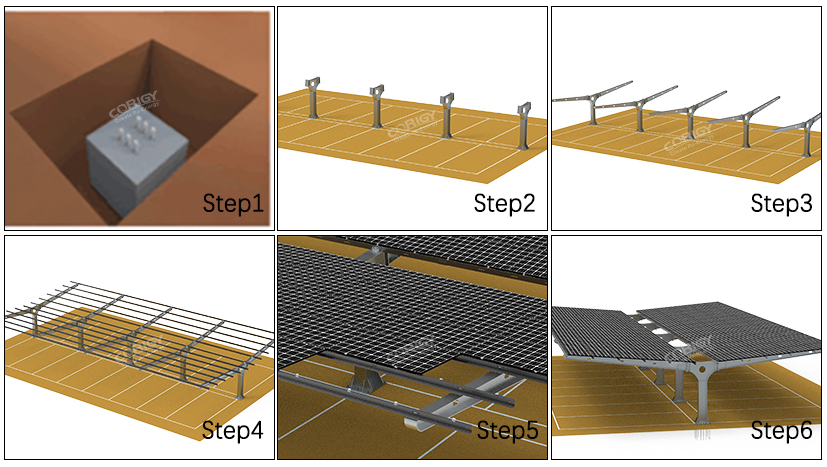

1. Foundation Installation.
① Excavation: Excavate to the specified depth based on your local soil report and our engineering calculations(Contact us for the depth needed).
②Ground Cage: Place the pre-fabricated ground cages into the holes.
③Pour Concrete: Pour the concrete and vibrate it to remove air pockets. Allow it to cure fully before erecting the steel.
2. Erecting the Y-Type Steel Columns
Guide the column so that the base plate slides over the protruding anchor bolts.Tighten the nuts onto the anchor bolts to the specified torque value.
3. Installing the Main Steel Beams
Bolt the beams to the brackets at the top of the Y-Columns using high-tensile structural bolts. Ensure the entire steel frame is square and level. Cross-measure the diagonals to confirm there is no parallelogram distortion.
4.  Mounting Rail Attachment
Install the rail sequentially across the structure. Ensure the rails are evenly spaced according to panel layout drawings. Check alignment – rails should be straight and level. Temporary tighten connections to allow for final adjustments
5. Solar Module Installation
Secure the module using mid-clamps and end-clamps. Torque all clamps to the manufacturer's specifications to prevent micro-cracks in the glass.

          Reference Technical Drawing                              Installation Guide                                        Product Catalogue

How to Get Your Suitable Technical Drawing

CORIGY's products have been applied to medium to large-scale photovoltaic projects ranging from 15MW to over 810 MW globally. For customer to get their suitable design, we will need you to provide the information below.

1. Dimensions of the panel (Width* Length* Thickness);
2. Layout of the array (How many panels in row and how many panels in column. Portrait install of solar panel or landscape. Portrait recommend 2-3 rows, Landscape recommend 4-5 rows)
With those two above, our engineer team can calculate how long the length of the rails and beam should be.
3.  Install Angle (Recommend 5- 10 degrees)
4.  Height from the lowest of the solar panel to the ground (Recommend 2500mm)
With those two above, our engineer team can calculate how long the columns should be.
5. Max wind speed
6. Max snow load
With those two above, our engineer team can decide the specification of the material to use

Contact us for FREE Drawing, FREE Calculation Report and FREE Quote
