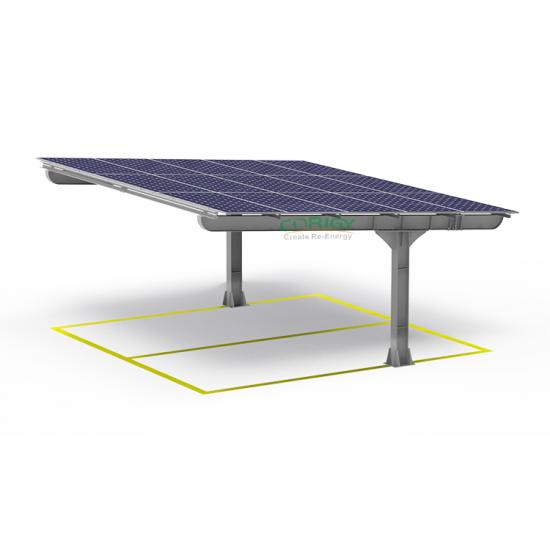

Corigy Two Cars Steel Parking Shed Solar Module Mounting Structure

A steel solar carport is a structure made of steel that is designed to provide shelter for vehicles while also serving as a solar power generation system. It incorporates solar panels into the design to capture sunlight and convert it into electricity. This electricity can be used to power electric vehicles or be fed back into the grid.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    CP-2PS
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Corigy Two Cars Steel Parking Shed Solar Module Mounting Structure

Steel carports are preferred for their durability and strength, as they can withstand harsh weather conditions and provide long-lasting protection for vehicles. When combined with solar panels, they offer the added benefit of producing renewable energy and reducing carbon emissions.

ev charging station solar carport

Product Name

Solar Carport for 2 Cars

Mount Location

Ground

Mount Base

Cement Block

Mount Angle

5 Degrees

Wind Load

38m/s

Snow Load

1.1KN/m2

Applicable Solar Panels

2278*1134*35mm

Solar Panel Layout

Horizontal Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Q235B,Q355B

Surface Treatment

Hot Dip Galvanized, Zn-Al-Mg Coated, Painting

Mounting Accessories Material

SUS304

Column color

Silver, White, Black, Yellow, Blue, Customized

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China

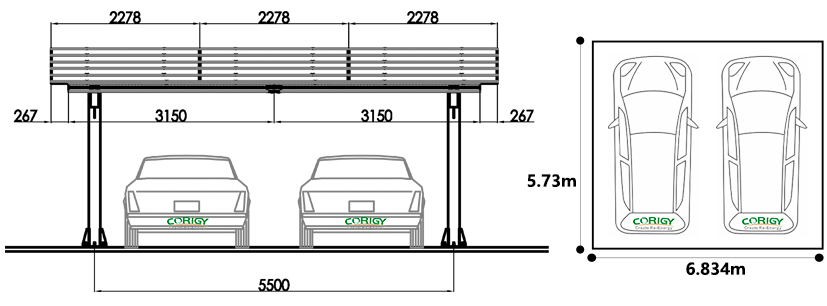

Steel Solar carport


You can down the product datasheet here "Product Datasheet Download"




How long does it take to install a solar carport?

The installation time for a solar carport can vary depending on several factors, including the size and complexity of the system, the site conditions, and the experience of the installation team.
In general, a simple solar carport installation can take anywhere from a few days to a couple of weeks. This includes the time required for site preparation, such as leveling the ground and pouring the foundation, assembling the steel structure, installing the solar panels and wiring, and connecting the system to the electrical grid.
However, larger and more complex installations may take longer. Factors such as the number of solar panels, the need for additional electrical work, and any customizations to the carport design can extend the installation process.
It's important to consult with a professional solar installer who can assess your specific project requirements and provide a more accurate estimate of the installation timeline.

Black solar carport schletter

long span solar carport structure supplier

galvanized steel solar carport

single pole steel solar carport




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

solar panel support seller


           OEM solar bracket factory
