Klip-Lok Metal Roof Solar Mount Racking System

CORIGY SOLAR Klip-Lok Metal Roof Solar Mounting System is made of aluminum alloy, and is applicable for solar power station installed on commercial and residential trapezoidal metal roofs. We offer a variety of clamp types to ensure a perfect connection to different Klip-Lok metal roof sheets. This product is pre-assembled to reduce installation difficulties and time, and save construction costs,it is a solar panel mounting solution that is both economical, easy to use.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    CP-JC Series
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Klip-Lok Metal Roof Solar Clamps

Metal Roof Solar Clamps



Product Name

Klip-Lok Metal Roof Solar Mount Racking System

Mount Location

Sloped Roof

Mount Base

Klip-Lok 406/700 Metal Roof

Mount Angle

0-15°

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China



Advantages:



1. The Klip Lok clamp are simply attached to metal rooftop and provide a secure non-penetrating fastening solution.

2. Improved grabbing part for metal rooftop solar installation.

3. Fully anodized aluminum and SUS304 fasteners.

4. Can use with bottom mount rail.

5. The Klip Lok clamp would be simply fastened by 2 hex bolts.



Suitable for Klip-Lok Metal Roof

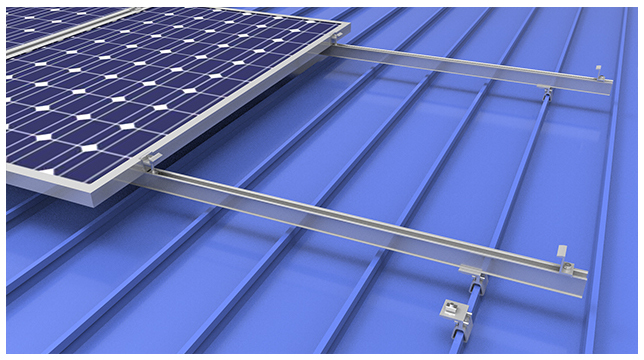

The Klip-Lok roof clamp provides an easy way to mount solar panels on Klip-Lok type roofs without penetrations.The Klip-Lok interface is a small platform that clamps on to the Klip-Lok 'ribs' without drilling through the tin roof. The solar mount clamp can be used with bottom mount rail, which can save installation time and labor cost.


Klip-Lok roof clamp

Racking Accessories

Roof Clamp with Bolts,Washers,EPDM washer

Rails

Bolts and blocks(toggles)

End Clamp with Hex Socket Head Bolts M8,Toggles

Mid Clamp with Hex Socket Head Bolts M8,Toggles





More Similar Products:

There are more options of rooftop clamps for Klip-Lok metal rooftop solar PV installation.


Klip-Lok metal rooftop solar PV installation

Klip-Lok metal rooftop solar PV installation
