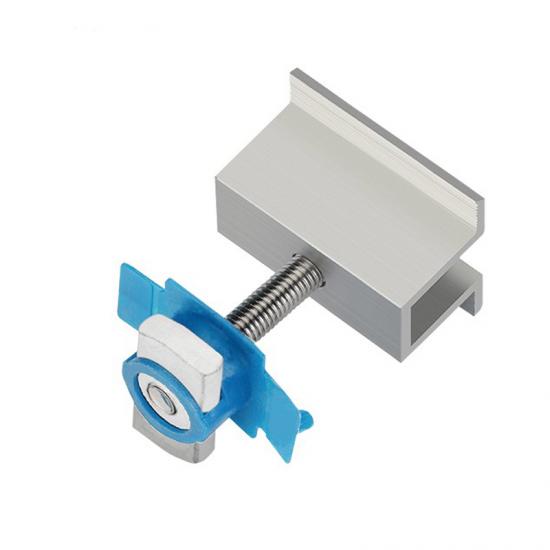

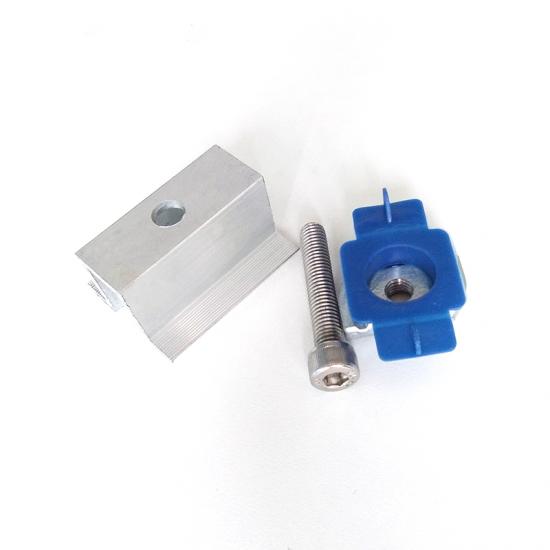

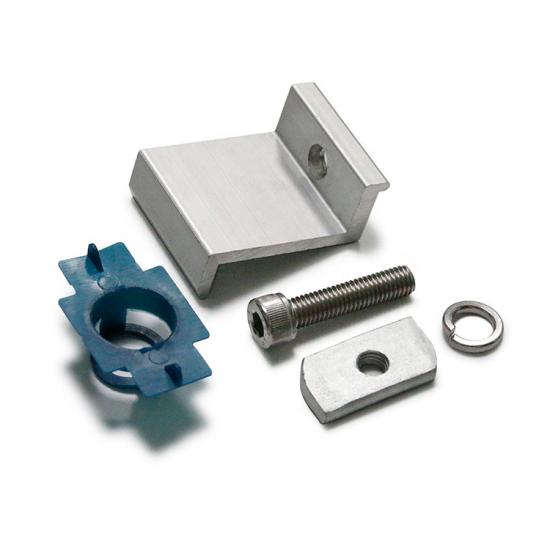

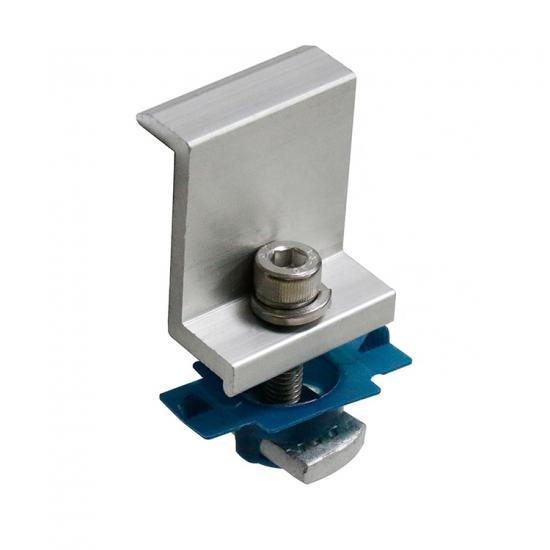

Solar Panel Mounting Accessories Mid Clamp End Clamp for Solar Panel

These solar panel mid clamps and end clamp make a solid connection between panels, you simply mount them in the target location, saving time and effort for your installation
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    SMC-005
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Solar Panel Mid Clamps and End Clamps for C/U Type Steel

Product Name

Solar Panel Mid Clamp and End Clamp

Applicable Solar Panels

Framed Panels,30mm/35mm/40mm/45mm thickness

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Material

Al6005-T5 (Surface Anodic Oxidation)

Fastener Material

SUS304/SUS410, Plastic

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China


According to different needs, choose the matching solar panel mid/end clamps




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.


In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.


All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
