Brand:
CORIGY SOLARItem NO.:
FRM03Payment:
T/T, L/C, O/A, D/PProduct Origin:
CHINAShipping Port:
XIAMENLead Time：
Depends on project time or receipt time
Ballast Mounts For Solar Panels
|
Install Site |
Flat Roof or Lower Profile Roof |
|
Tilt Angle |
10 Degrees |
|
Building Height |
20 m |
|
Max Wind Speed |
<60m/s |
|
Snow Load |
1.4KN/m2 |
|
Standard |
AS/NZS 1170 and Other International Standard |
|
Material |
High Class Aluminum Alloy Al6005-T5 & Stainless Steel 304 |
|
Anticorrosive |
Anodized Aluminum & Stainless Steel |
|
Color |
Natural and Customized |
|
Warranty |
Ten Year Warranty and Twenty Year's Service Life |
Product Feature
1. There is no need to use expansion bolts or chemical botls on the roof, no damage to the roof. The system connects all the panels with the rails into a whole.
2. A combination of high quality aluminum conponents make a robust, reliable system and quick and easy installation.
3. Unlike the traditional end clamp and mid clamp, the nut is fix the clamp which is more easy and safety to fix the panels.

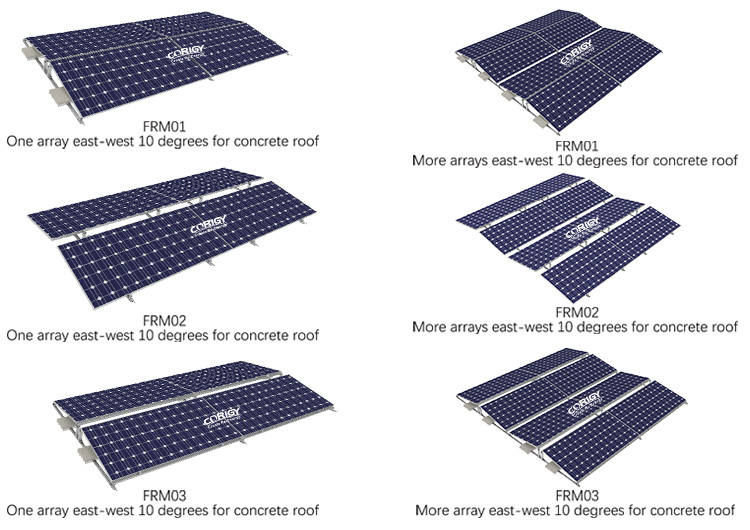

4. Various installation methods, suitable for any specifications of the panel.
5. Maximized roof space uitilized to ensure better panel output.
6. East-west facing panels have a greater effect on resisting wind loads
1. Fix the rear legs and front leg on the ballast rails
2. Place the ballast trays on the ballast rails. And place the concrete blocks on the ballast trays. FRM03 need to install the rail
3. Fix the panel on the rear legs and front legs with middle/end clamps
4. Install the other side for east-west design
5. Install the rail connectors on the ballast rails to connect with other arrays
Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
Solar mounting accessories such as end/mid clamp, cable clip, grounding items， etc.
Flat roof solar panel mounting system, such as ballast mount, east-west ballast mount, etc.
Install solar panel on the metal roof by standing seam, klip-lok, L foot or other clamps.
CORIGY SOLAR, 11 years experience of research, manufacture and sale of solar energy system. We are always trying to provide the best support for you, including fast response, cost, QC, design, distributor support.
