Corigy Cement Roof Solar Ballasted Racking

Corigy East West Solar PV Installation ballast has various installation methods, suitable for any specifications of the panel. There is no need to use expansion bolts or chemical bolts on the roof, no damage to the roof. The system connects all the panels with the rails into a whole.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    FRM03
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Ballast Mounts For Solar Panels

Flat roof solar brackets offer a reliable and efficient solution for mounting solar panels on flat or low-sloped roofs, facilitating the utilization of rooftop space for renewable energy generation.

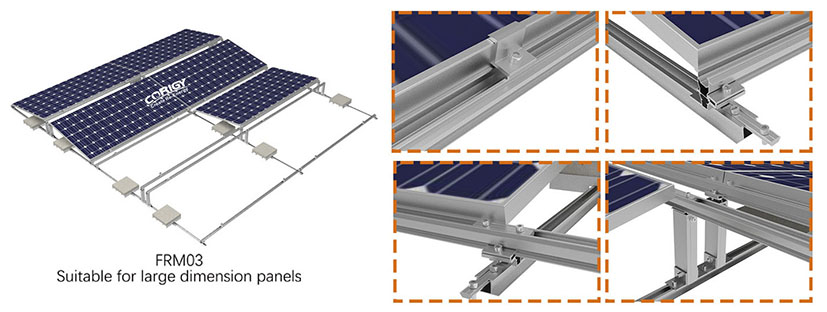

east west solar ballast manufacturer


Install Site

Flat Roof or Lower Profile Roof

Tilt Angle

10 Degrees

Building Height

20 m

Max Wind Speed

<60m/s

Snow Load

1.4KN/m2

Standard

AS/NZS 1170 and Other International Standard

Material

High Class Aluminum Alloy Al6005-T5 & Stainless Steel 304

Anti-corrosive

Anodized Aluminum & Stainless Steel

Color

Natural and Customized

Warranty

Ten Year Warranty and Twenty Year's Service Life

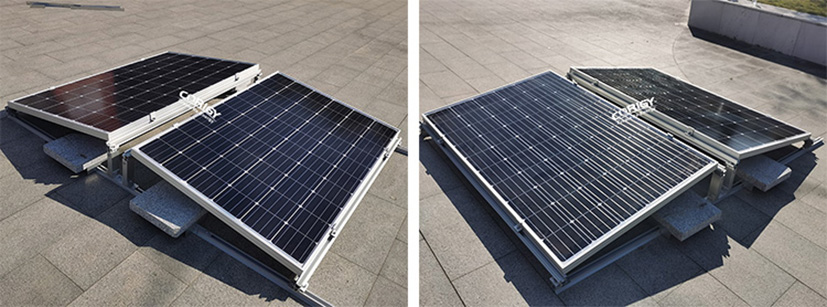

cement roof diy ballast solar rack

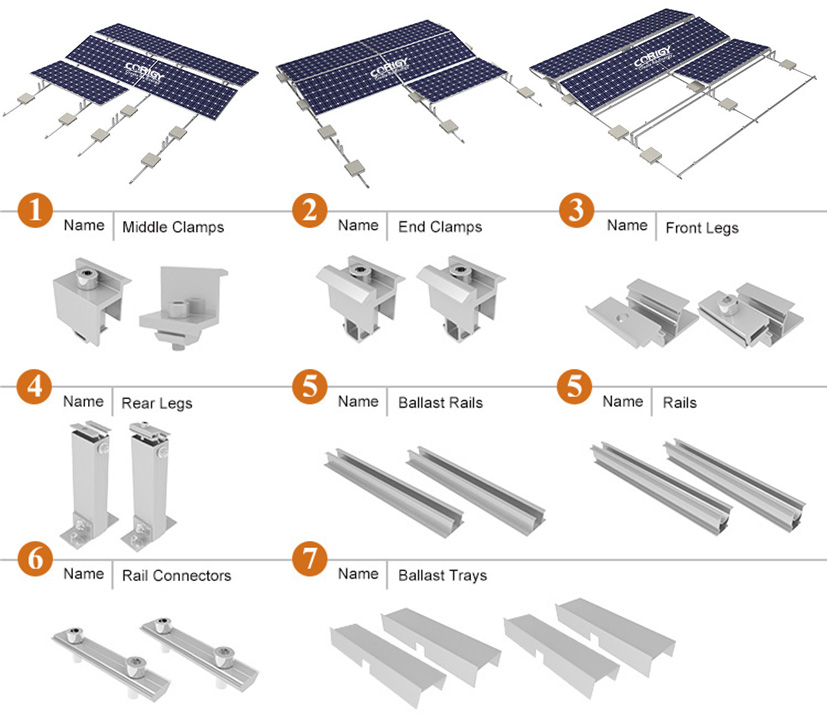

flat roof ballasted solar racking

Product Feature

1. There is no need to use expansion bolts or chemical bolts on the roof, no damage to the roof. The ballast type solar structure connects all the panels with the rails into a whole.
2. A combination of high quality aluminum components make a robust, reliable flat roof ballasted solar racking system and quick and easy installation.
3. Unlike the traditional end clamp and mid clamp, the nut is fix the clamp which is more easy and safety to fix the photovoltaic modules.
4. This solar panel ballast mounting system has various installation methods, suitable for any specifications of the solar panel.
5.  Maximized roof space utilized to ensure better panel output.
6. East-west solar ballasted racking has a greater effect on resisting wind loads

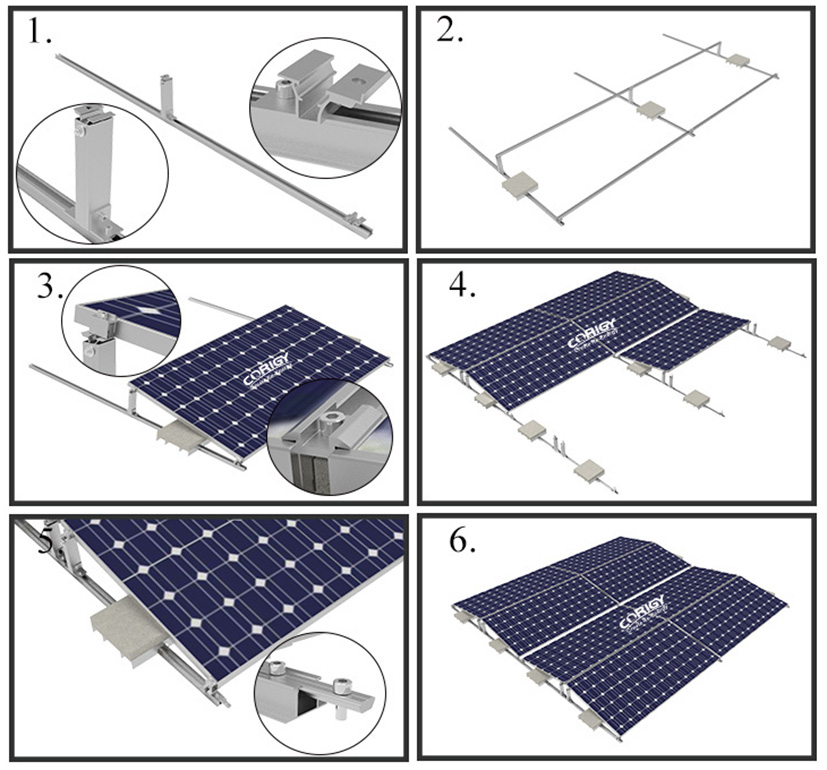

1. Fix the rear legs and front leg on the ballast rails
2. Place the ballast trays on the ballast rails. And place the concrete blocks on the ballast trays. FRM03 need to install the rail
3. Fix the panel on the rear legs and front legs with middle/end clamps
4. Install the other side for east-west design
5. Install the rail connectors on the ballast rails to connect with other arrays

ballast solar racking system installation

How do you secure solar panels to a flat roof?

To secure solar panels to a flat roof, you can use a variety of methods, depending on the specific roof type and structure. Here are a few common approaches:
1. Solar Panel Ballasted Mounting System: This is a popular method for flat roofs where the solar panels are held in place using the weight of ballast blocks (such as concrete or metal) placed on the panel mounting system. The ballast blocks provide counterweight, preventing the panels from being uplifted by wind. This method is non-penetrating and does not require any roof penetrations.
2. Penetrating Racking System: This method involves attaching the solar panels to the roof by penetrating the roof surface using bolts or screws.


     DIY solar ballasted racking


         reverse tilt ballasted solar mounting kits


ballast type solar structure suppliers





Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
