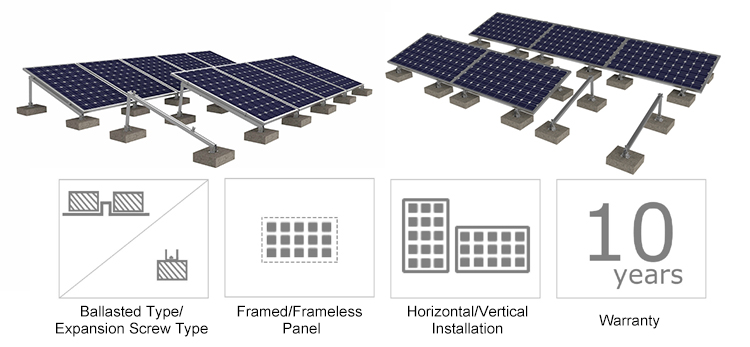

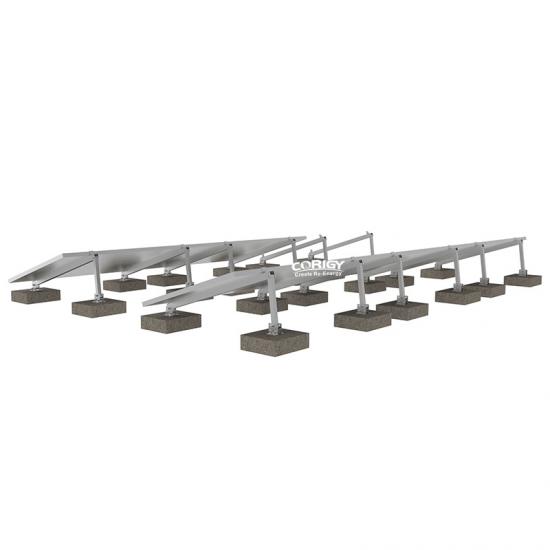

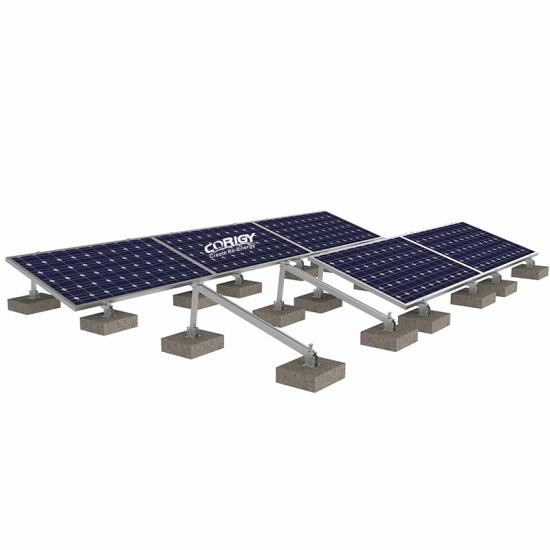

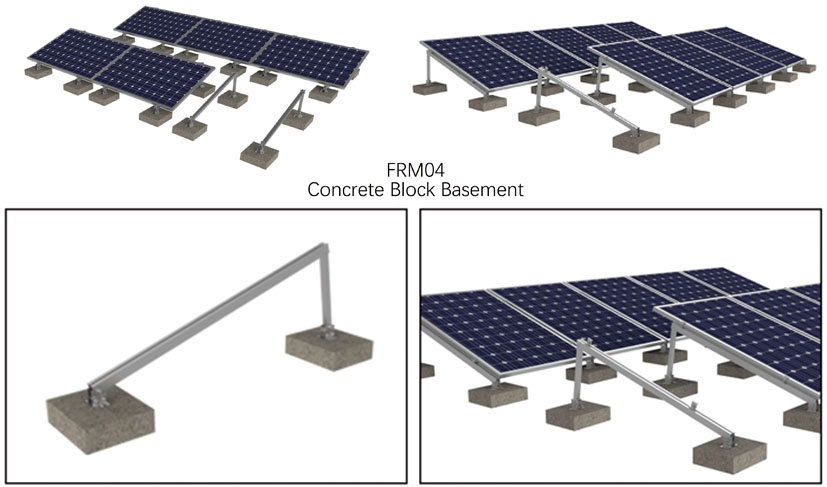

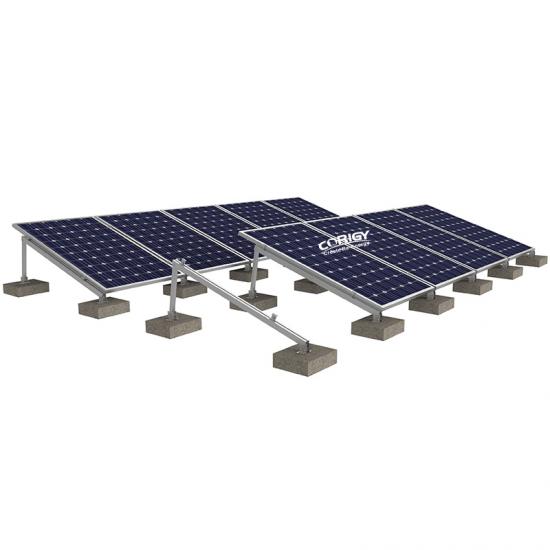

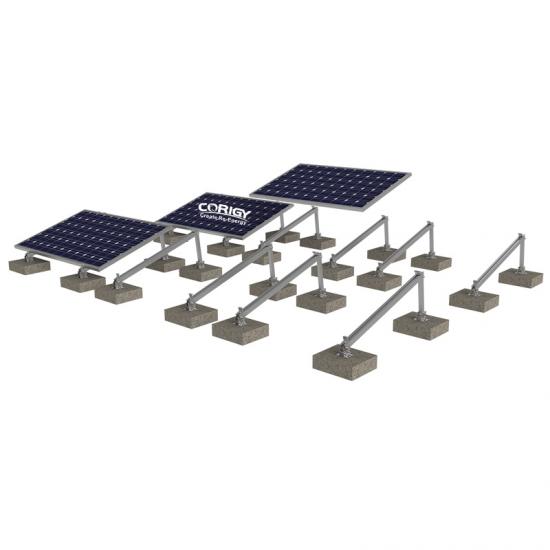

Cement Foundation Solar Panel Ballast Mounting System

Rooftop ballasted systems can be used on a variety of flat or low-slope rooftop surfaces, including concrete, EPDM, TPO, PVC, and other membrane types. They are also suitable for locations with specific roofing restrictions or limitations.



Install Site	Flat Roof or Lower Profile Roof
Tilt Angle	10~60 Degree
Building Height	20 m
Max Wind Speed	<60m/s
Snow Load	1.4KN/m2
Standard	AS/NZS 1170 and Other International Standard
Material	High Class Aluminum Alloy Al6005-T5 & Stainless Steel 304
Anticorrosive	Anodized Aluminum & Stainless Steel
Color	Natural and Customized
Warranty	Ten Year Warranty and Twenty Year's Service Life



How much ballast do I need for solar panels?

Ballast systems for solar panels are designed to provide sufficient weight to counteract the uplift forces caused by wind. The ballast is typically in the form of concrete blocks, stone, or other heavy materials that are placed on the racking system to keep it stable and prevent it from being lifted or moved.
The amount of ballast required for solar panels depends on several factors, including the size and weight of the panels, the wind speed and site-specific conditions, and the mounting system being used. Generally, ballast amounts are calculated to ensure the stability and safety of the solar array. It is typically expressed as a weight per square foot or square meter.
It is important to consult with a professional solar installer or structural engineer who can analyze your specific installation circumstances and provide accurate calculations for the required amount of ballast. Corigy's engineer team can do it.



Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
