Corigy DIY Solar Panel Mounting Brackets for Off Grid Home System

This diy solar panel mounting brackets is made of rust-free anodized aluminum alloy, bolts, nuts and washers are stainless steel. It's easy to mount solar panels to recreational vehicles (RV's), boats, cabins or anywhere else where you need a simple yet reliable method to mount solar panels.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    SMC-003
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

DIY Solar Panel Mounting Brackets for Off Grid Home System

Solar Z brackets, also known as solar panel mounting brackets or Z-shaped brackets, are hardware components used to securely mount solar panels onto the roof or other surfaces of RVs (Recreational Vehicles).

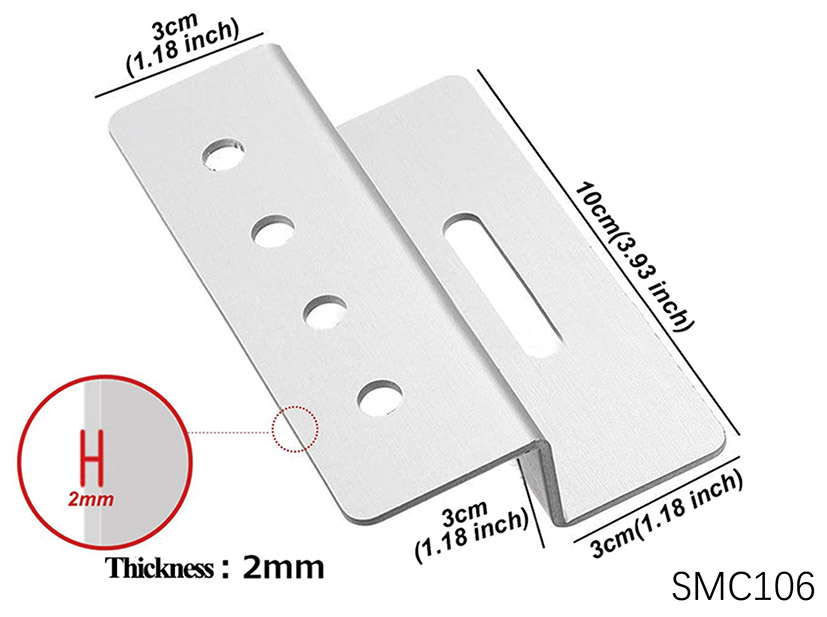

caravan pv module z bracket

Product Name

Solar Panel Z Mounting Brackets

Mount Location

Recreational Vehicles (RV's), Boats, Cabins

Mount Base

Flat Surface

Mount Angle

Parallel to the rooftop

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China

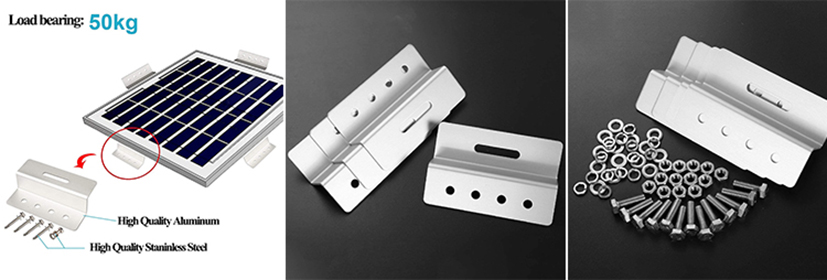

aluminum RV z bracket for sale

sailboat z solar bracket supplier

How do I run my RV off solar?

To run your RV off solar power, you'll need a solar power system installed on the roof of your RV. Here is a step-by-step guide on how to set up a solar power system for your RV:
1. Determine your power needs: Start by estimating your power requirements, taking into account the appliances and devices you plan to use while traveling, such as lights, refrigerator, water pump, fans, TV, and charging personal electronic devices. This estimation will help you determine the size of the solar system you need.
 2. Calculate your solar panel needs: Based on your energy needs, calculate the required wattage of solar panels. Keep in mind factors like available roof space, system efficiency, and average sunlight hours in your location. You may also consider the desired battery charging time.
3. Install mounting brackets: Install mounting brackets on the roof of your RV to secure the solar panels. Ensure the brackets are securely attached and provide a stable base for the panels. Consult the installation manual provided by the solar panel manufacturer for accurate instructions.
4. Choose batteries: Select deep-cycle batteries designed for solar applications. These batteries are capable of handling repeated charging and discharging cycles. Determine the battery capacity you'll need based on your energy requirements and the maximum duration you expect to be off-grid.

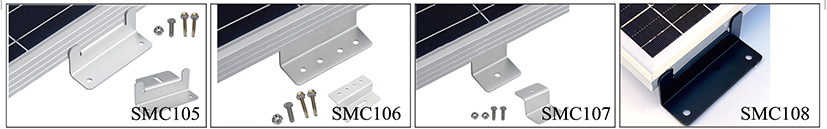

fixed tilt solar z bracket


flat roof solar z bracket

Solar Z bracket for RV cars

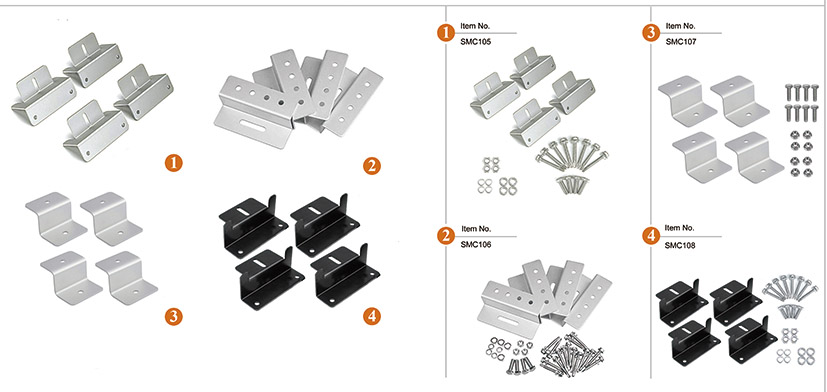

       According to different needs, choose the matching solar panel Z mounting brackets

        z bracket holder for solar panel  z type bracket for solar panel  silver solar panel z bracket




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

solar panel support seller


        OEM solar bracket factory
