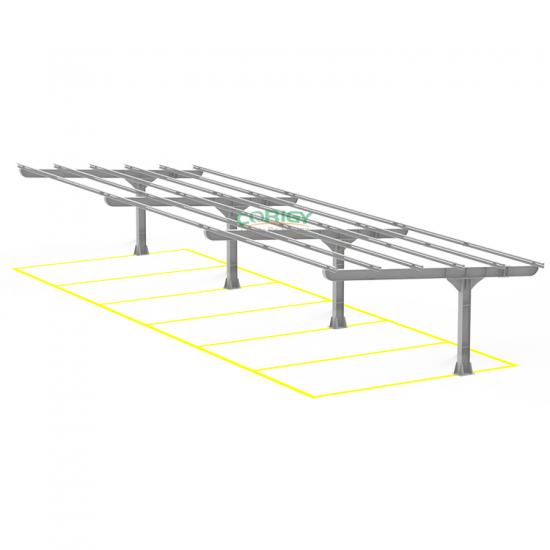

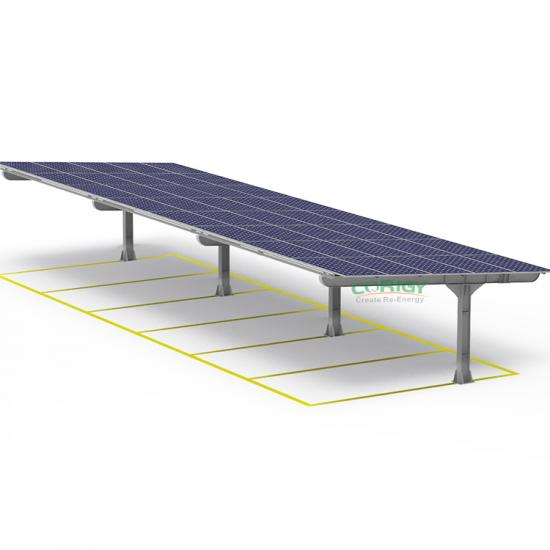

Corigy Modern Cantilever Solar Caport Schletter For Six Parking Lot

Solar steel carports contribute to sustainability by using clean, renewable energy and reducing the carbon footprint associated with transportation and energy production. They can also serve as an efficient use of space by utilizing parking areas for dual purposes.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    CP-6PS
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Corigy Modern Cantilever Solar Caport Schletter For Six Parking Lot

Solar steel carports combine the functionality of a traditional carport with the benefits of solar power generation. They offer a practical and eco-friendly solution for vehicle owners and contribute to the adoption of renewable energy.

White Painting Solar Carport

Product Name

Solar Carport for 6 Cars

Mount Location

Ground

Mount Base

Cement Block

Mount Angle

5 Degrees

Wind Load

38m/s

Snow Load

1.1KN/m2

Applicable Solar Panels

2278*1134*35mm

Solar Panel Layout

Horizontal Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Q235B,Q355B

Surface Treatment

Hot Dip Galvanized, Zn-Al-Mg Coated, Painting

Mounting Accessories Material

SUS304

Column color

Silver, White, Black, Yellow, Blue, Customized

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China

high rise solar carport


You can down the product datasheet here "Product Datasheet Download"





Why don't we put solar panels over parking lots?

Solar carports, which are carports with solar panels installed on the top, can offer several advantages and are worth considering in certain situations. Here are a few reasons why solar carports can be beneficial:
1. Solar Generation: Solar carports provide a dual benefit of generating clean and renewable electricity while also providing shade for parked vehicles. By utilizing this untapped space, solar carports can contribute to reducing greenhouse gas emissions and offsetting the reliance on fossil fuels.
2. Increased Energy Generation: Compared to rooftop solar installations, solar carports can often generate more electricity due to the unobstructed sunlight and the ability to orient the panels optimally for maximum energy production.
3. Efficient Land Use: Parking lots and open spaces dedicated to vehicles often have a significant footprint. By installing solar panels over parking lots, you can make use of idle space and avoid occupying additional land for solar installations.
4. Reduced Heat Island Effect: Parking lots tend to absorb and radiate heat, contributing to the urban heat island effect. By adding solar panels on top of the carports, you can help reduce this effect by shading the parked vehicles and minimizing the amount of heat absorbed by the lot.
5. Covered Parking and Charging Stations: Solar carports offer protection from sun, rain, and snow for parked vehicles. They can also be integrated with electric vehicle (EV) charging stations, providing a convenient and sustainable solution for EV owners.

Black solar carport schletter

long span solar carport structure supplier

galvanized steel solar carport

single pole steel solar carport




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

solar panel support seller


           OEM solar bracket factory
