Stainless Steel Hook

Tile roof hooks are typically shaped like a hook or bracket and are designed to be installed beneath the existing tiles. They often have adjustable or fixed brackets that allow for precise positioning and secure attachment. The hooks are usually made from materials like stainless steel or aluminum to provide durability and resistance to weathering.

Product Name	Stainless Steel Hook
Mount Location	Sloped Roof
Mount Base	Arched ceramic tile roof
Mount Angle	Parallel to the rooftop
Wind Load	60m/s
Snow Load	1.6KN/m2
Applicable Solar Panels	Framed Panels & Frameless Panels
Solar Panel Layout	Horizontal Panel Installation & Vertical Panel Installation
Design Standard	AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
Rack Material	Al6005-T5 (Surface Anodic Oxidation）
Fastener Material	SUS304/SUS410
Mounting Accessories Material	Al6005-T5 (Surface Anodic Oxidation）
Column color	Natural Silver or According to Customer
Warranty Period	10 years
Service Life	25 years
Loading Port	Xiamen Port,China

pitched roof hook supplier

How are solar panels attached to a slate roof UK?

Solar panels can be attached to a slate roof in the UK using various methods. Here are a few commonly used methods:

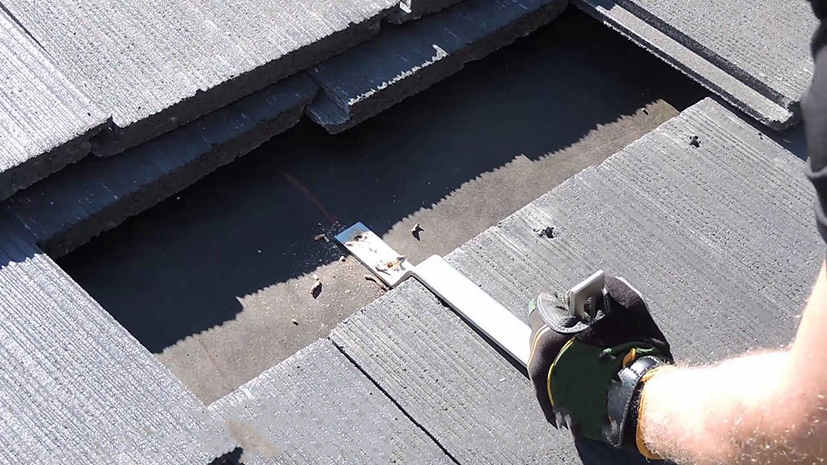

1. Roof hooks with flashing: The most popular method involves using specialized roof hooks that are attached to the rafters or battens beneath the slate tiles. These hooks are designed to fit between the slates and are secured with stainless steel screws. Flashing, typically made of lead or another waterproof material, is then placed over the hooks and integrated with the surrounding slates to provide a watertight seal.
2. Slate clamps: Another approach is to use slate clamps or brackets specifically designed for slate roofs. These clamps are placed over the top edge of the slate tiles and secured to the roof structure. The solar panels are then mounted onto the clamps, providing a secure attachment without the need for roof penetrations.
3. Roof-integrated solar panels: Some solar panel systems are designed to be integrated directly into the roof, creating a sleek and aesthetically pleasing look. In this case, the solar panels replace the slates or tiles in the designated areas of the roof. The integration method depends on the specific system used and the type of slate roof.
It's important to note that the attachment method can vary depending on the specific characteristics of the slate roof, such as the thickness and condition of the slates, and the local regulations and building codes. It is recommended to consult with a professional solar installer who has experience with slate roofs to ensure proper installation and adherence to local regulations.

According to different roof shapes, choose the matching photovoltaic tile roof hook

Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

solar panel support seller
