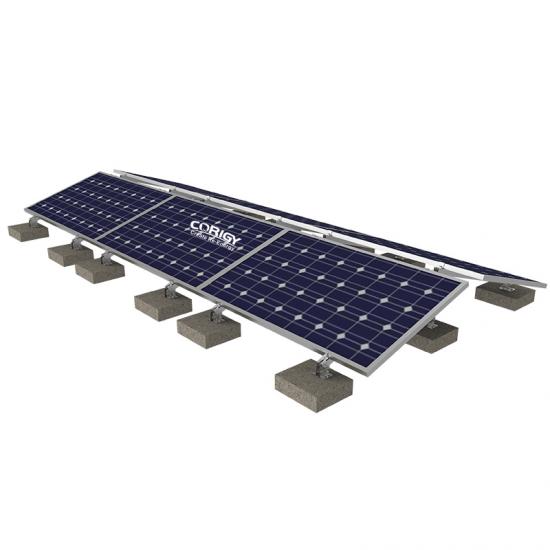

Corigy East West Ballast Flat Roof Solar Mounting System

Flat rooftop ballasted racking systems offer several advantages. They simplify installation by eliminating the need for roof penetrations, which can protect the integrity of the roofing system and reduce the risk of leaks. Ballasted systems are also relatively easy to install and can be quickly deployed, making them suitable for a wide range of flat roof applications. Additionally, the ballast can provide additional thermal insulation for the building, improving energy efficiency
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    FRM-007
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

East West Ballast Flat Roof Solar Mounting System

renewable energy flat roof solar mounting kits


Install Site

Flat Roof or Lower Profile Roof

Tilt Angle

10~60 Degree

Building Height

20 m

Max Wind Speed

<60m/s

Snow Load

1.4KN/m2

Standard

AS/NZS 1170 and Other International Standard

Material

High Class Aluminum Alloy Al6005-T5 & Stainless Steel 304

Anticorrosive

Anodized Aluminum & Stainless Steel

Color

Natural and Customized

Warranty

Ten Year Warranty and Twenty Year's Service Life


aluminum flat roof solar mounting brackets


east west flat roof solar bracket seller




How do you secure solar panels to a flat roof?

1. Ballasted Racking System: This method involves using a ballast, typically made of concrete blocks or steel weights, to secure the solar panels in place. The racking system is designed to distribute the weight evenly across the roof. The ballast provides enough weight to anchor the system without penetrating the roof. This method is non-penetrating, meaning it does not require any holes to be drilled into the roof surface. It is often used in commercial or large-scale installations.
2. Mechanical Attachment: Another method is to mechanically attach the solar panels to the roof using mounting brackets and fasteners. This approach requires penetrating the roof membrane and securely attaching the panels to the structural framing of the building. It is important to take proper precautions to avoid damaging the roof and ensure proper waterproofing to prevent any leaks. The specific attachment method may depend on the type of flat roof (e.g., concrete, metal, or membrane) and local building codes.
3. Adhesive Mounting: Some flat roofs allow for the use of adhesive systems, where the solar panels are attached directly to the roof surface using specialized adhesives. This method eliminates the need for penetrations and is often used on roofs made of materials like single-ply membranes or certain types of metal roofs. Manufacturers of adhesives provide guidelines for proper installation to ensure a secure bond.

diy portable ballasted solar mounting kits


      anodized aluminum ballasted solar mounting structure


         moveable aluminum flat roof solar structure




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
