Brand:
CORIGY SOLARItem NO.:
TRH22Product Origin:
CHINAColor:
SilverShipping Port:
XIAMENLead Time:
Depends on project time or receipt timeThis solar tiles roof mounting system was specially designed for use in Pitched tiles roof. Modules can be arranged in various configurations.

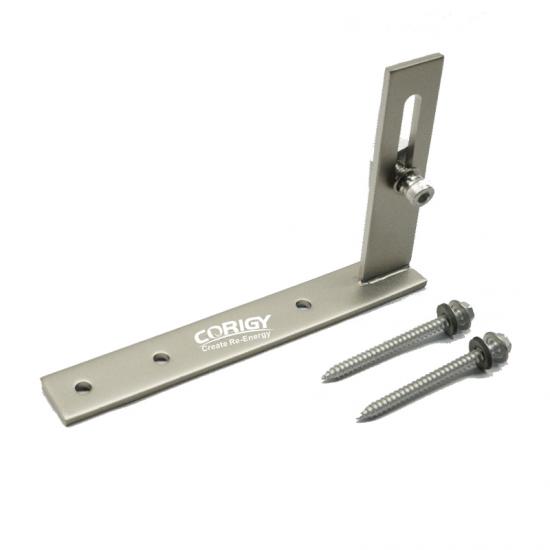

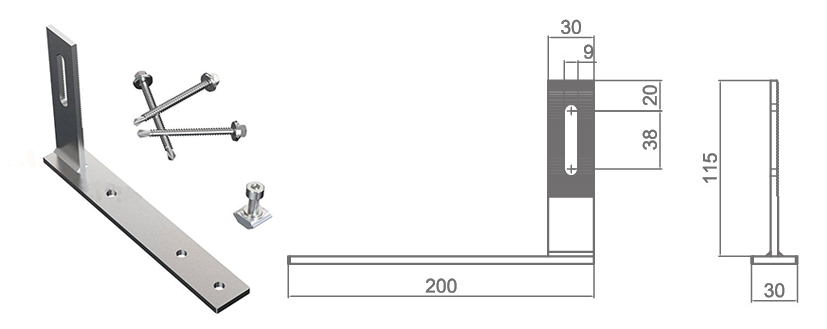

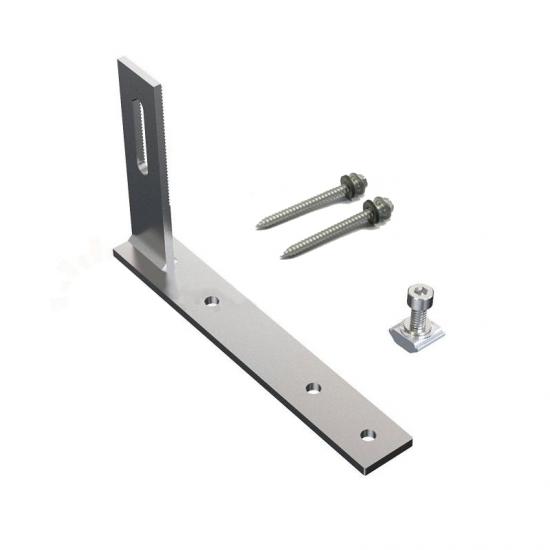

Product Name |
Stainless Steel Hook |
Mount Location |
Sloped Roof |
Mount Base |
Arched ceramic tile roof |
Mount Angle |
Parallel to the rooftop |
Wind Load |
60m/s |
Snow Load |
1.6KN/m2 |
Applicable Solar Panels |
Framed Panels & Frameless Panels |
Solar Panel Layout |
Horizontal Panel Installation & Vertical Panel Installation |
Design Standard |
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 |
Rack Material |
Al6005-T5 (Surface Anodic Oxidation) |
Fastener Material |
SUS304/SUS410 |
Mounting Accessories Material |
Al6005-T5 (Surface Anodic Oxidation) |
Column color |
Natural Silver or According to Customer |
Warranty Period |
10 years |
Service Life |
25 years |
Loading Port |
Xiamen Port,China |
Advantages:
1.Allow installation at any point on the seam.
2.Can be adjusted even after accessories have been installed.
3.There are many kinds of tile roof bracket fixtures, suitable for various tile roof types
4.The fixture structure is simple and easy to install.
5.High-quality after-sales service to solve your worries.
6.CORIGY SOLAR Solar Kit is fully assembled ready to be installed.
First fix the fixing device on the corresponding tile roof,and then lock the track
How do you secure solar panels to roof tiles?
Solar panels can be secured to roof tiles using various methods, with the most common method being the use of mounting hooks or brackets. Here's a general process for securing solar panels to roof tiles:
According to different roof shapes, choose the matching photovoltaic tile roof hook
Corigy
Solar has been focusing on manufacturing and design solar mounting
bracket for more than 10 years. Corigy's products have been installed
and used in more than 30 countries and regions, with a total installed
capacity of more than 8GW. After the construction is completed, all
projects are completed by the official acceptance team, and they are
currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
