Brand:
CORIGY SOLARItem NO.:
TRH40Product Origin:
CHINAColor:
SilverShipping Port:
XIAMENLead Time:
Depends on project time or receipt time
Product Name |

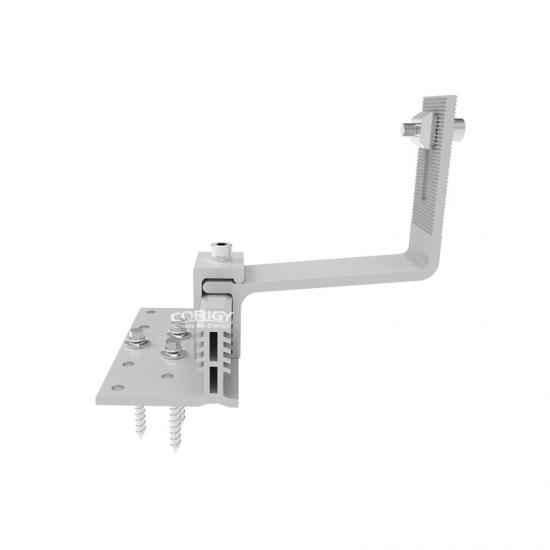

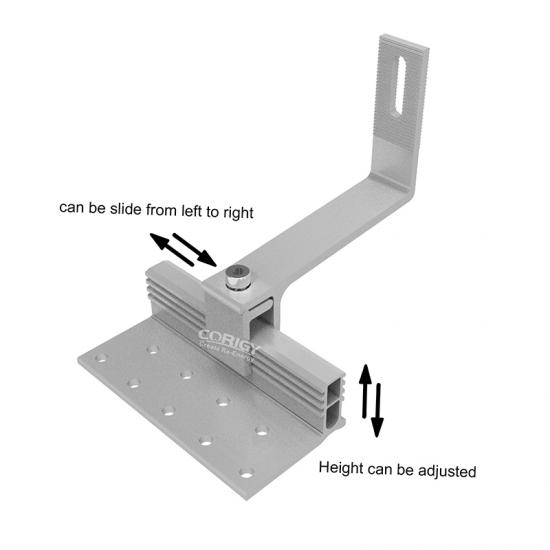

Aluminum Solar Panel Mounting Bracket Slate Roof Hook |
Mount Location |
Sloped Roof |
Mount Base |
Arched ceramic tile roof |
Mount Angle |
Parallel to the rooftop |
Wind Load |
60m/s |
Snow Load |
1.6KN/m2 |
Applicable Solar Panels |
Framed Panels & Frameless Panels |
Solar Panel Layout |
Horizontal Panel Installation & Vertical Panel Installation |
Design Standard |
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 |
Rack Material |
Al6005-T5 (Surface Anodic Oxidation) |
Fastener Material |
SUS304/SUS410 |
Mounting Accessories Material |
Al6005-T5 (Surface Anodic Oxidation) |
Column color |
Natural Silver or According to Customer |
Warranty Period |
10 years |
Service Life |
25 years |
Loading Port |
Xiamen Port,China |
How do solar panels connect to the roof?
Solar panels are typically mounted on a roof using a combination of mounting hardware and brackets. The exact method of installation can vary depending on the roof type (e.g., shingle, tile, metal) and the specific mounting system used. Here are a few common methods:

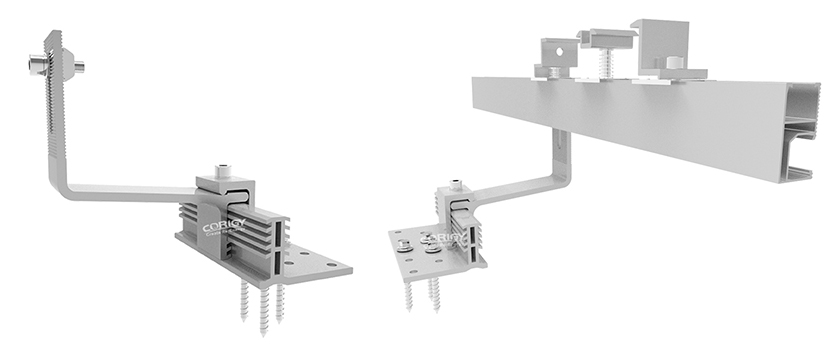

1. Railed Systems: This is a popular method for sloped roofs. Aluminum rails are attached to the roof using brackets or roof anchors. The solar panels are then attached to the rails using clamps or brackets. The rails provide a sturdy framework for holding the panels in place.
2. Ballasted Mounting: This method is typically used for flat roofs. The solar panels are placed on a mounting system that uses weighted ballasts to hold them in place. The ballasts provide stability and prevent the panels from shifting. This method does not require penetrations into the roof, making it suitable for roofs where drilling may not be permitted.
3. Flush Mounting: This method involves attaching the solar panels directly to the roof surface. For asphalt shingle roofs, mounting brackets are installed and secured to the roof rafters or trusses. The solar panels are then attached to the brackets using clamps or other types of mounting hardware. The mounting system is designed to provide a secure and weatherproof connection between the roof and the solar panels.
According to different roof shapes, choose the matching photovoltaic slate roof hook
Corigy
Solar has been focusing on manufacturing and design solar mounting
bracket for more than 10 years. Corigy's products have been installed
and used in more than 30 countries and regions, with a total installed
capacity of more than 8GW. After the construction is completed, all
projects are completed by the official acceptance team, and they are
currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
