Brand:
CORIGY SOLARItem NO.:
TRH03Product Origin:
CHINAColor:
SilverShipping Port:
XIAMENLead Time：
Depends on project time or receipt timeThe inclined mounting parts can be installed from any position of aluminum alloy extrusion guide rail, and pre-installed with the height of the clamping block and hook, thus minimizing the installation time and cost.All structural parts are high-strength stainless steel and anodized aluminum alloy to ensure the high durability of materials. The grid solar energy inclined roof support system is designed by experienced engineers according to AS/NZS 1170 and other international common standards to withstand extreme weather conditions.The main stress components of the system are tested in various ways to ensure its structural bearing capacity.
|
Product Name |

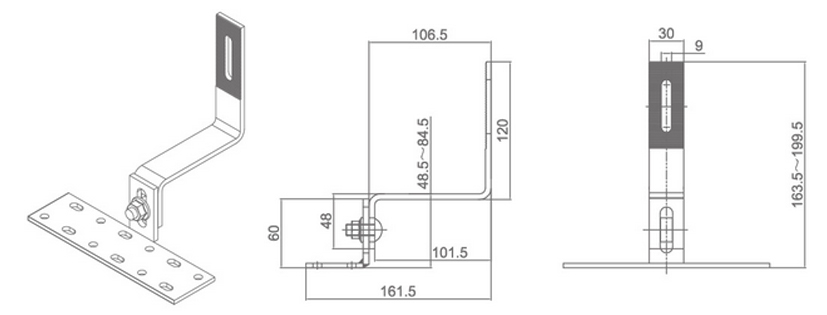

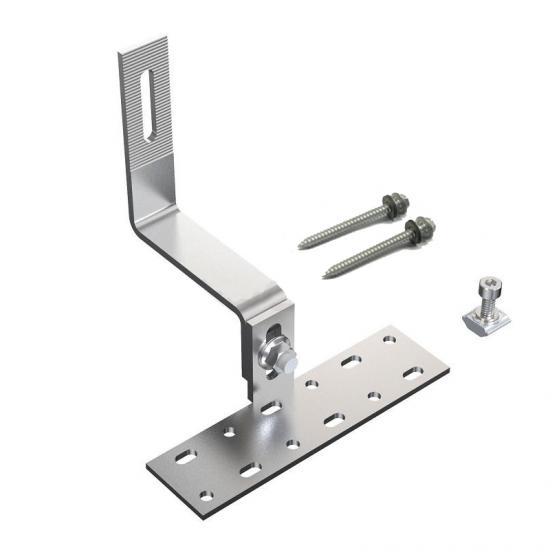

Stainless Steel Solar Panel Mounting Bracket Slate Roof Hook |
|
Mount Location |
Sloped Roof |
|
Mount Base |
Arched ceramic tile roof |
|
Mount Angle |
Parallel to the rooftop |
|
Wind Load |
60m/s |
|
Snow Load |
1.6KN/m2 |
|
Applicable Solar Panels |
Framed Panels & Frameless Panels |
|
Solar Panel Layout |
Horizontal Panel Installation & Vertical Panel Installation |
|
Design Standard |
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 |
|
Rack Material |
Al6005-T5 (Surface Anodic Oxidation） |
|
Fastener Material |
SUS304/SUS410 |
|
Mounting Accessories Material |
Al6005-T5 (Surface Anodic Oxidation） |
|
Column color |
Natural Silver or According to Customer |
|
Warranty Period |
10 years |
|
Service Life |
25 years |
|
Loading Port |
Xiamen Port,China |

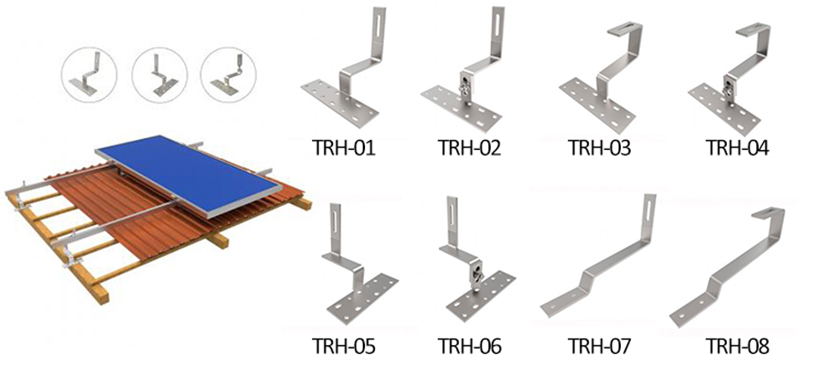

According to different roof shapes, choose the matching photovoltaic tile roof hook
Corigy
Solar has been focusing on manufacturing and design solar mounting
bracket for more than 10 years. Corigy's products have been installed
and used in more than 30 countries and regions, with a total installed
capacity of more than 8GW. After the construction is completed, all
projects are completed by the official acceptance team, and they are
currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
Solar mounting accessories such as end/mid clamp, cable clip, grounding items， etc.
Flat roof solar panel mounting system, such as ballast mount, east-west ballast mount, etc.
Install solar panel on the metal roof by standing seam, klip-lok, L foot or other clamps.
CORIGY SOLAR, 11 years experience of research, manufacture and sale of solar energy system. We are always trying to provide the best support for you, including fast response, cost, QC, design, distributor support.
