Brand:
CORIGY SOLARItem NO.:
TRH11Product Origin:
CHINAColor:
SilverShipping Port:
XIAMENLead Time:

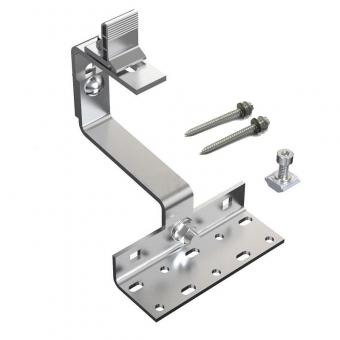

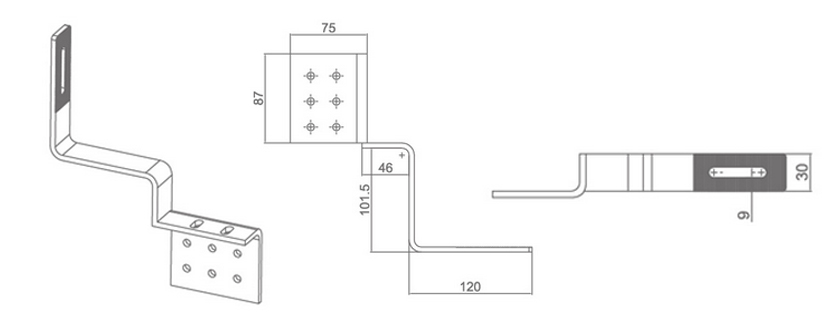

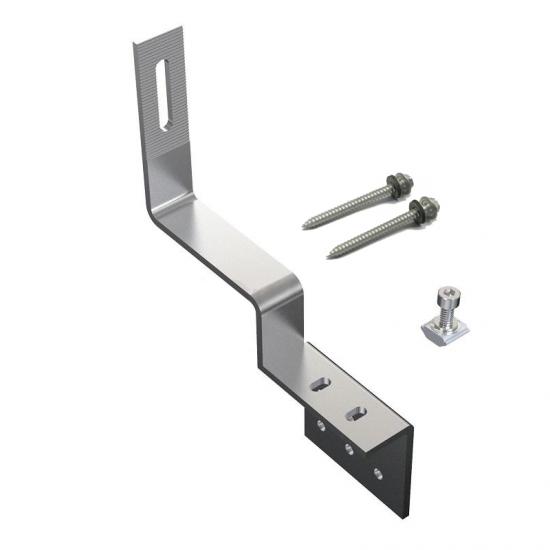

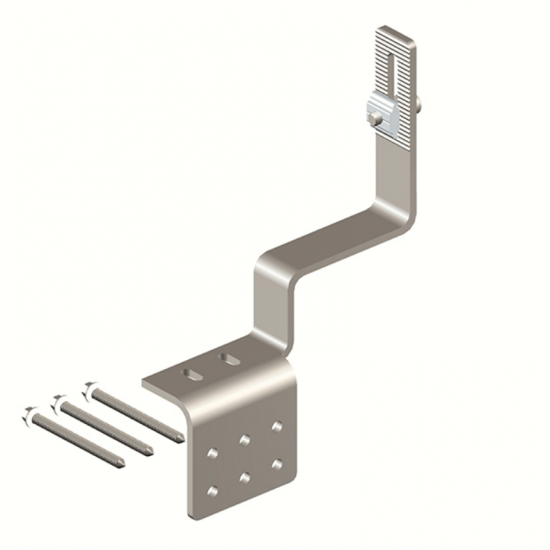

Depends on project time or receipt timeSolar Tile Hook can be used for solar mounting system installation on sloped residential flat tile roof or curved tile roof. The tile hooks are compatible with most common rails and made of 304 stainless steel.Factory directly delivery with fast delivery;Made of high strength stainless steel 304;Height fixed or adjustable are available Wider distance of bolt holes to avoid splitting rafter 5mm thick 30mm wide stainless steel tile hook arm and 4mm thick stainless steel bottom plate
Product Name |
Stainless Steel Solar Panel Mounting Bracket Slate Roof Hook |
Mount Location |
Sloped Roof |
Mount Base |
Arched ceramic tile roof |
Mount Angle |
Parallel to the rooftop |
Wind Load |
60m/s |
Snow Load |
1.6KN/m2 |
Applicable Solar Panels |
Framed Panels & Frameless Panels |
Solar Panel Layout |
Horizontal Panel Installation & Vertical Panel Installation |
Design Standard |
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 |
Rack Material |
Al6005-T5 (Surface Anodic Oxidation) |
Fastener Material |
SUS304/SUS410 |
Mounting Accessories Material |
Al6005-T5 (Surface Anodic Oxidation) |
Column color |
Natural Silver or According to Customer |
Warranty Period |
10 years |
Service Life |
25 years |
Loading Port |
Xiamen Port,China |
How do solar panels stick to roof?
Solar panels are typically mounted on roofs using a combination of mounting brackets or racking systems, roof hooks, and fasteners. Here is a general overview of how solar panels are attached to roofs:

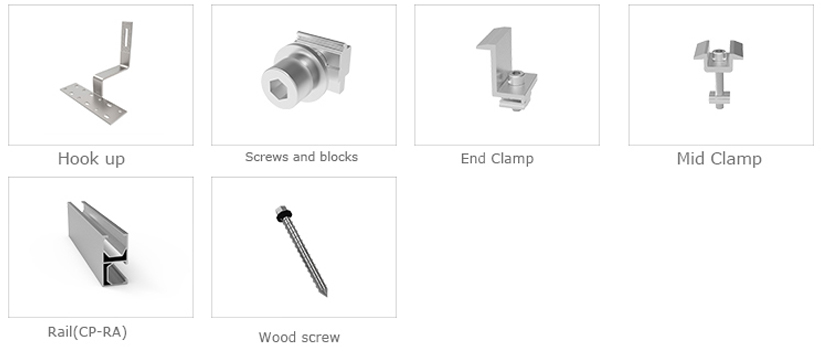

1. Mounting Hardware: The first step is to install a mounting system on the roof. This is typically done using aluminum rails or frames that are secured to the roof structure. The mounting hardware provides the foundation for attaching the solar panels and ensures they are securely held in place.
2. Roof Hooks: Roof hooks are specialized components that help secure the mounting brackets or racking systems to the roof. They are typically made of steel and are designed to be attached to the roof structure, such as wooden rafters or metal beams. Roof hooks come in different shapes and sizes depending on the roof type, such as tile, asphalt shingle, or metal roofs.
3. Flashing: To ensure a watertight seal and protect against leaks, flashing is used around the roof hooks. Flashing typically consists of a metal or rubber material that is placed around the roof hooks and secured to the roof surface.
4. Fasteners: Fasteners, such as screws or bolts, are used to secure the roof hooks and flashing to the roof structure. These fasteners need to be strong enough to hold the weight of the solar panels and withstand the forces exerted by wind and other weather conditions.

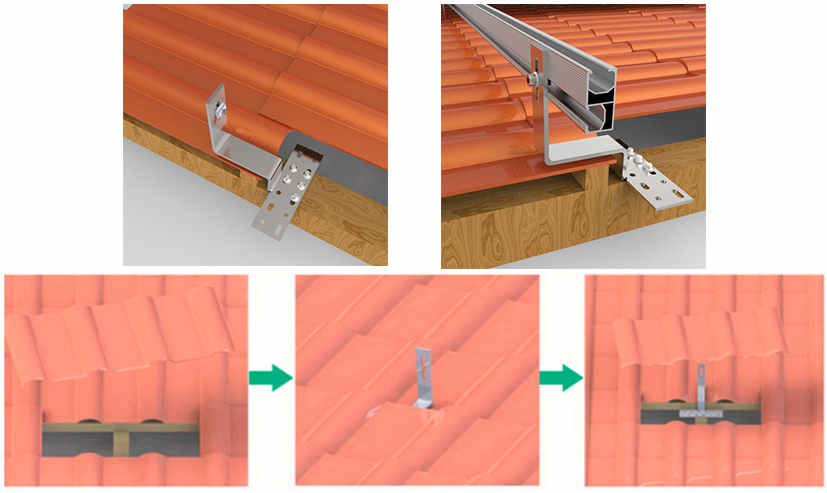

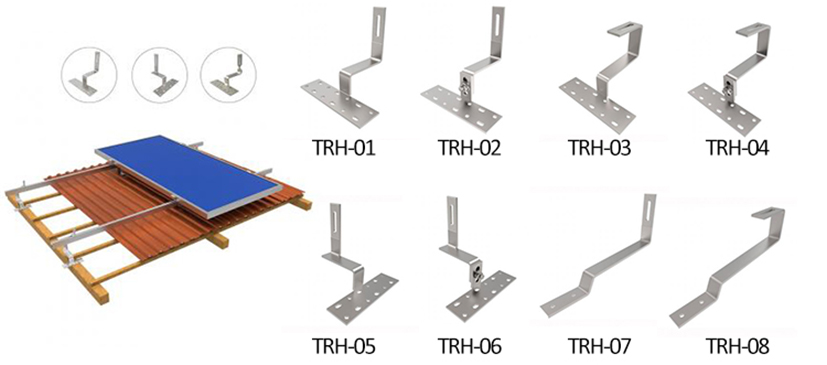

According to different roof shapes, choose the matching photovoltaic tile roof hook

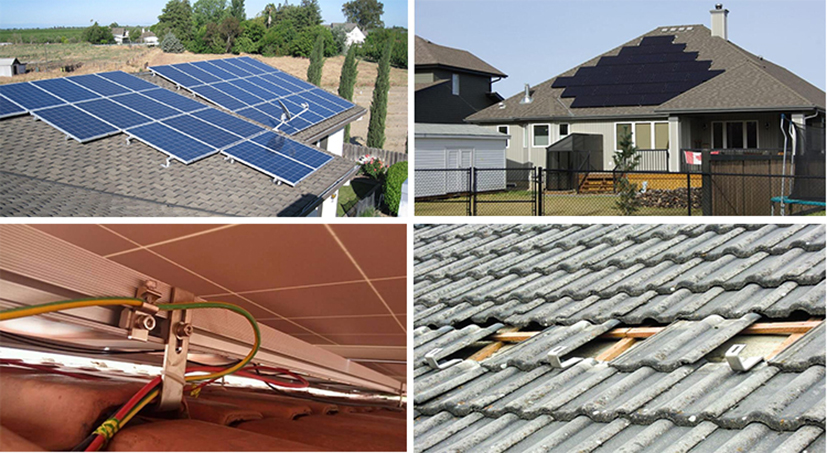

Corigy
Solar has been focusing on manufacturing and design solar mounting
bracket for more than 10 years. Corigy's products have been installed
and used in more than 30 countries and regions, with a total installed
capacity of more than 8GW. After the construction is completed, all
projects are completed by the official acceptance team, and they are
currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
