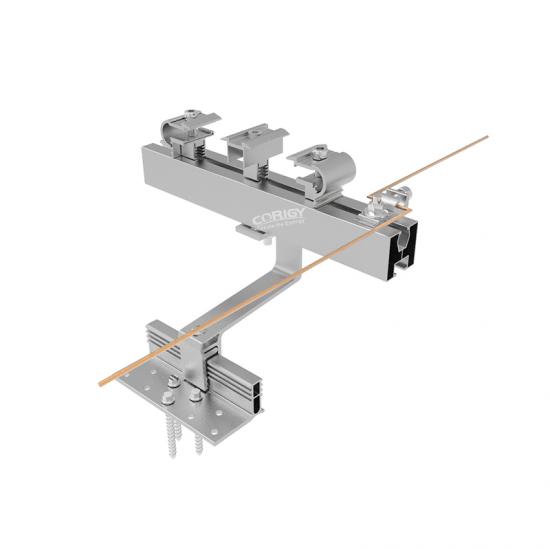

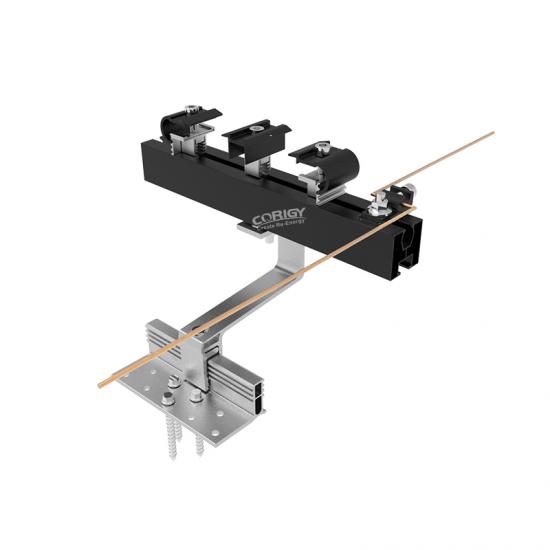

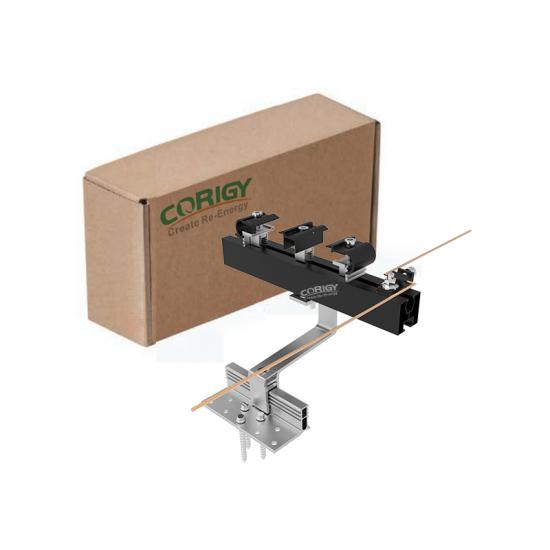

Corigy Tile Roof Adjustable DIY Solar Mounting Kits

A standard tile roof solar mounting kit is a set of components designed specifically for installing solar panels on a tile roof. The kit typically includes the necessary hardware and accessories to securely mount and fix the solar panels in place while ensuring the integrity of the roof. Corigy's has standard tile mounting kit apply for 1-5 panels.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    CP-TR01
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

Standard Tile Roof Solar Panel Mounting Kit

harvey tile solar energy ebay solar hook

Product Name

Standard Pitch Roof Solar Mounting Kits

Item No.

CP-TR1           CP-TR2           CP-TR03           CP-TR04           CP-TR05

Number of panel

1 Panel            2 Panels          3 Panels            4 Panels            5 Panels

Layout of the panel

1x1                  1x2                  1x3                     1x4                    1x5

Area of the structure

1.2*2.3m          2.5*2.3m         3.7*2.3m             5*2.3m              6.2*2.3m

Weight

3.87kg              7.02kg            11.04kg              14.62kg             18.2kg

Packing Size

63*20*17cm     63*20*17cm    63*20*21cm       63*20*34cm      63*20*27cm

Suitable solar panel

2278*1134*30/35mm solar panel in any brand

Direction of solar panel

Vertical installation

Installation Angle

Parallel to the rooftop

Material

Al6005-T5 & SUS304

Color

Silver Anodizing or Black Anodizing

Warranty

10 Years

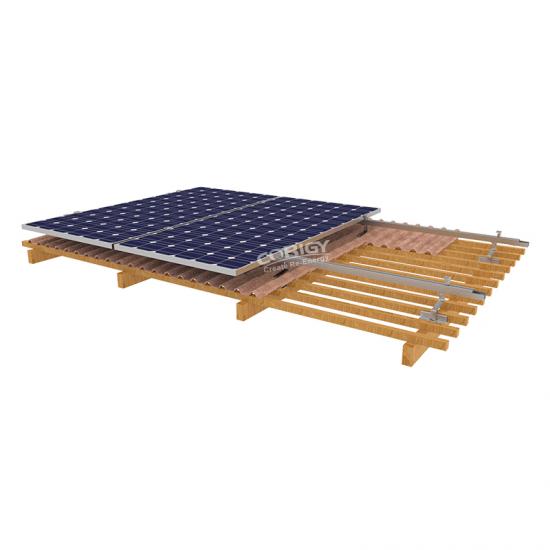

Corigy's standard tile roof PV module mounting kits apply for 1-5 panels, can meet the daily electricity needs of the family.

shingle roof solar hook drawing



Can you put solar panels on tiles?

Yes, it is possible to install solar panels on tile roofs. However, it requires specialized mounting systems designed for tile roofs to ensure secure and weatherproof installation.

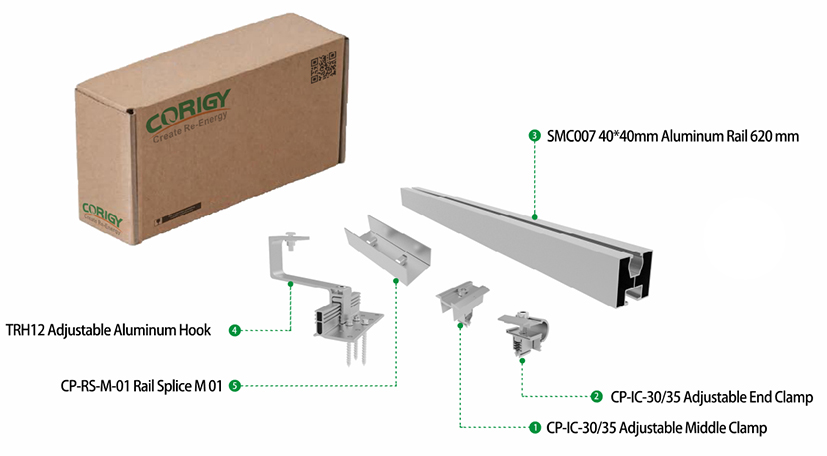

Tile roof solar mounting kits typically include components such as:
1. Mounting brackets: These are designed to attach the solar panels to the roof structure. They need to be strong, adjustable, and compatible with tile roofs.
2. Flashing: Flashing is installed around the mounting brackets to create a weather-resistant seal between the roof and the mounting system. It prevents water from penetrating the roof through the mounting holes.
3. Tile hooks or brackets: These are specifically designed to fit under the tiles and provide stable attachment points for the mounting brackets. They vary depending on the type of tile (e.g., clay, concrete, slate) and the specific installation requirements.
4. Rails or crossbars: These support the solar panels and run perpendicular to the roof's ridgeline. They provide a sturdy framework for mounting the solar panels.
5. Fasteners and hardware: These include screws, bolts, and other installation accessories needed to secure the mounting system to the roof.
When installing solar panels on a tile roof, it's essential to hire a professional solar installer with experience in tile roof installations. They will assess the type of tiles, roof structure, and local building codes to determine the appropriate mounting system and ensure a safe and secure installation.
Keep in mind that installing solar panels on a tile roof may require additional care and precautions compared to other roofing materials. It's important to protect the integrity of the roof and avoid any damage to the tiles during the installation process.

rooftop solar hook manufacturer

pitched roof solar mounting rack

According to different roof shapes, choose the matching photovoltaic slate roof hook

pitched roof solar bracket system




Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.
All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.

solar panel support seller


           OEM solar bracket factory
