Brand:
CORIGY SOLARItem NO.:
MRC11Product Origin:
CHINAColor:
SilverShipping Port:
XIAMENLead Time:
Depends on project time or receipt time

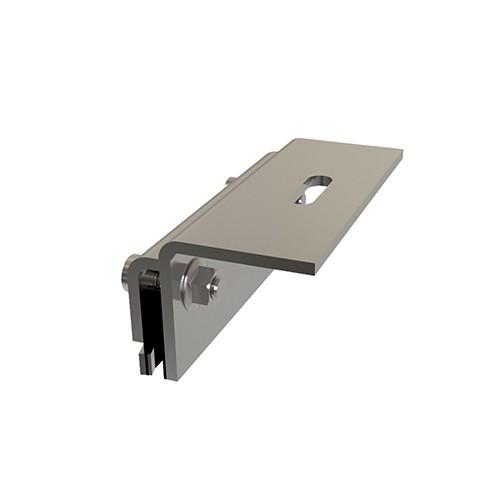

Klip-Lok Metal Roof Solar Clamps
CORIGY SOLAR Klip-Lok Metal Roof Solar Mounting
System is made of aluminum alloy, and is applicable for solar power
station installed on commercial and residential trapezoidal metal
roofs.
We offer a variety of clamp types to ensure a perfect connection to
different Klip-Lok metal roof sheets. This product is pre-assembled to
reduce installation difficulties and time, and save construction
costs,it is a solar panel mounting solution that is both economical,
easy to use.
Product Name |
Klip-Lok Metal Roof Solar Mount Racking System |
Mount Location |
Sloped Roof |
Mount Base |
Klip-Lok 406/700 Metal Roof |
Mount Angle |
0-15° |
Wind Load |
60m/s |
Snow Load |
1.6KN/m2 |
Applicable Solar Panels |
Framed Panels & Frameless Panels |
Solar Panel Layout |
Horizontal Panel Installation & Vertical Panel Installation |
Design Standard |
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 |
Rack Material |
Al6005-T5 (Surface Anodic Oxidation) |
Fastener Material |
SUS304/SUS410 |
Mounting Accessories Material |
Al6005-T5 (Surface Anodic Oxidation) |
Column color |
Natural Silver or According to Customer |
Warranty Period |
10 years |
Service Life |
25 years |
Loading Port |
Xiamen Port,China |
Advantages:
1. The Klip Lok clamp are simply attached to metal rooftop and provide a secure non-penetrating fastening solution.
2. Improved grabbing part for metal rooftop solar installation.
3. Fully anodized aluminum and SUS304 fasteners.
4. Can use with bottom mount rail.

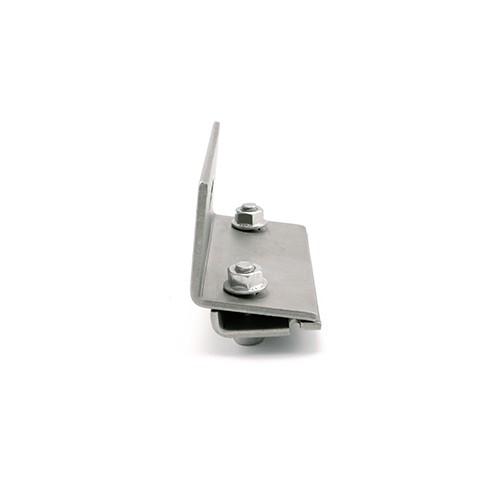

5. The Klip Lok clamp would be simply fastened by 2 hex bolts.
Suitable for Klip-Lok Metal Roof
The Klip-Lok roof clamp provides an easy way to mount solar panels on Klip-Lok type roofs without penetrations.The Klip-Lok interface is a small platform that clamps on to the Klip-Lok 'ribs' without drilling through the tin roof. The solar mount clamp can be used with bottom mount rail, which can save installation time and labor cost.
Racking Accessories |
Roof Clamp with Bolts,Washers,EPDM washer |
Rails |
|
Bolts and blocks(toggles) |
|
End Clamp with Hex Socket Head Bolts M8,Toggles |
|
Mid Clamp with Hex Socket Head Bolts M8,Toggles |
There are more options of rooftop clamps for Klip-Lok metal rooftop solar PV installation.
Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.
In
terms of selection, Corigy is based on the principle of highest
quality. The bracket uses high-quality main materials high-grade anode
aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent
anti-corrosive rust and anti-rust performance ensures its 30-year
service life. At the same time, the characteristics of aluminum
lightweight reduces the weight of the roof and make it safe and
reliable. The maximum wind speed can carry 60m/s, and the snow load
capacity is 1.4kn/㎡.
All
bracket solutions of Corigy are calculated based on the live conditions
environment. Corigy's advanced technical team conducted a force
analysis of the structure of the building, combined with the layout of
the bracket and photovoltaic components to verify the various feasible
bracket installation solutions to determine the most efficient,
convenient, safe and reliable solution.
