Universal types of metal roof solar mounting system

CORIGY SOLAR universal types of metal roof Solar PV Mounting Brackets System CPR-CS Series is made of aluminum alloy, and is applicable for solar power station installed  on commercial and residential other types of metal roofs.

We offer a variety of clamp types to ensure a perfect connection to different trapezoidal metal roof sheets. This product is pre-assembled to reduce installation difficulties and time, and save construction costs,it is a solar panel mounting solution that is both economical, easy to use.

  • Brand:

    CORIGY SOLAR
  • Item NO.:

    Other type puducts
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

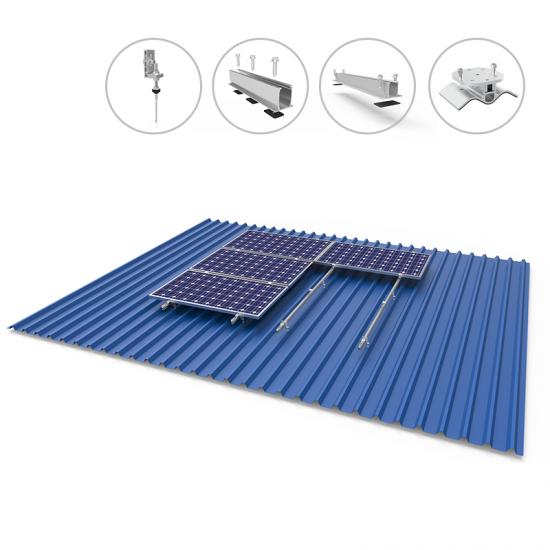

Universal type of Metal Roof Solar Mounting Brackets


metal roof Solar PV Mounting Brackets System

Product Name

Universal types of metal roof Solar Panel Mounting System

Mount Location

Sloped Roof

Mount Base

Other types of metal roof

Mount Angle

0-15°

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China




Advantage:
1. There are many types of metal roof solution for your needs, such as budget, shape of tin roof, installation methods, etc.
2. The tin roof solar mounting solution is simple and easy to install.
3. High-quality after-sales service to solve your worries.

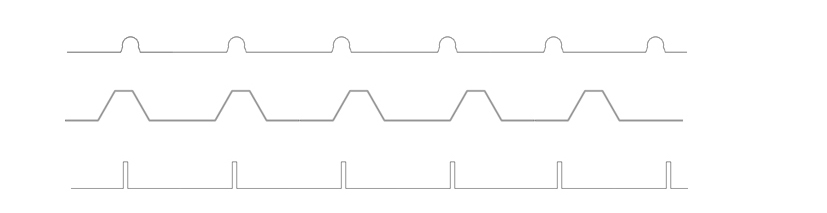

Suitable for trapezoidal metal roof

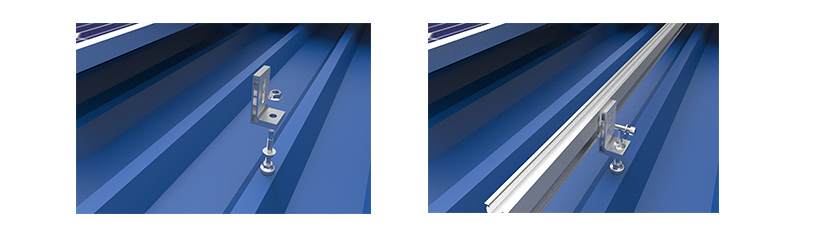

Fix the fixture on the trapezoidal metal roof first, and then lock the track


trapezoidal metal roof



Roof mounting with Bolts,Washers,EPDM Washers,Self-tapping Screws

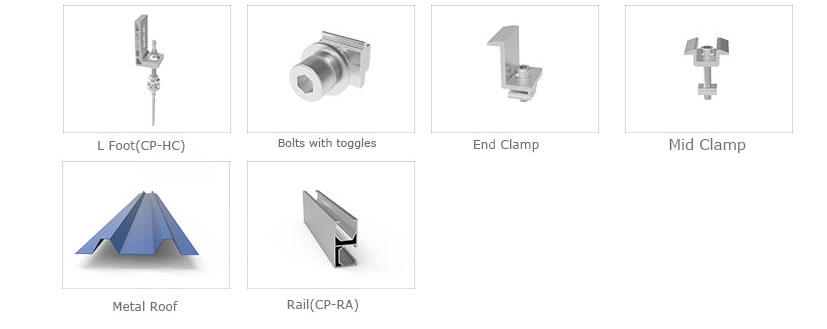

Solar rails

 Racking Accessories

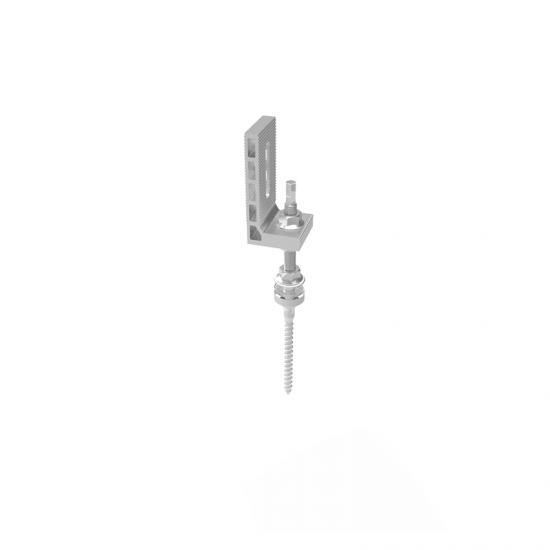

 L-foot with bolts,Washers



End Clamp with Hex Socket Head Bolts M8,Toggles



Mid Clamp with Hex Socket Head Bolts M8,Toggles

Roof mounting with Bolts,Washers,EPDM Washers,Self-tapping Screws


More Similar Products:

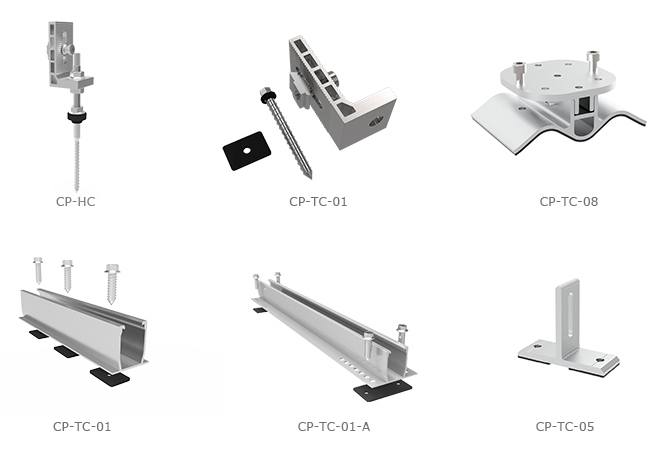

1. The same shape of the metal roof system can choose different fixtures according to different application needs or budget.

2. We can provide corresponding solutions for different tin roof shapes and different customer needs

metal roof system
