Standing Seam Roof Solar Panel Mounting Brackets (CP-ZL Series)

CORIGY SOLAR precision engineered metal roof solar mounting systems standing seam clamp CP-ZL seriess.Our solar panel mounting kits are available in two varieties: A rackless mounting kit and an L-Foot kit for use with racking systems. Both roofing clamps kits to secure panels to the seams of metal roofing panels. Each of our kits utilizes our non-penetrating roofing clamps, which helps protect roofing panels from installation damages by eliminating the rotating forces exerted on panels by typical set screws.

  • Brand:

    CORIGY SOLAR
  • Item NO.:

    CP-ZL series
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

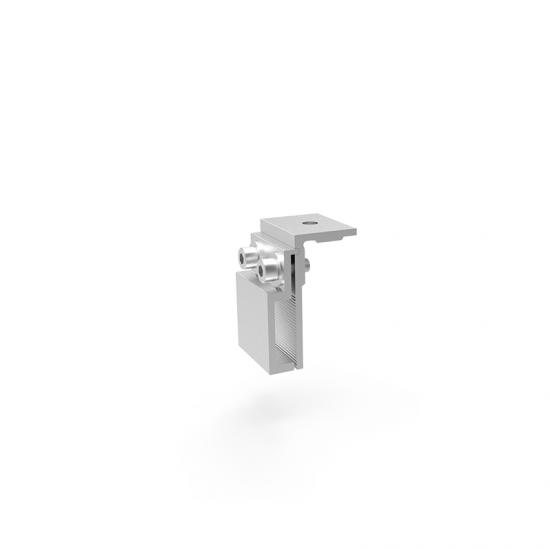

Standing Seam Roof Clamp for Solar Panel (CP-ZL series)



Product NameStai

Standing Seam Metal Roof  Solar Panel Mounting Brackets (CP-ZL Series)

Mount Location

Sloped Metal Roof

Mount Base

Standing Seam Metal Roof

Mount Angle

0-15°

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China

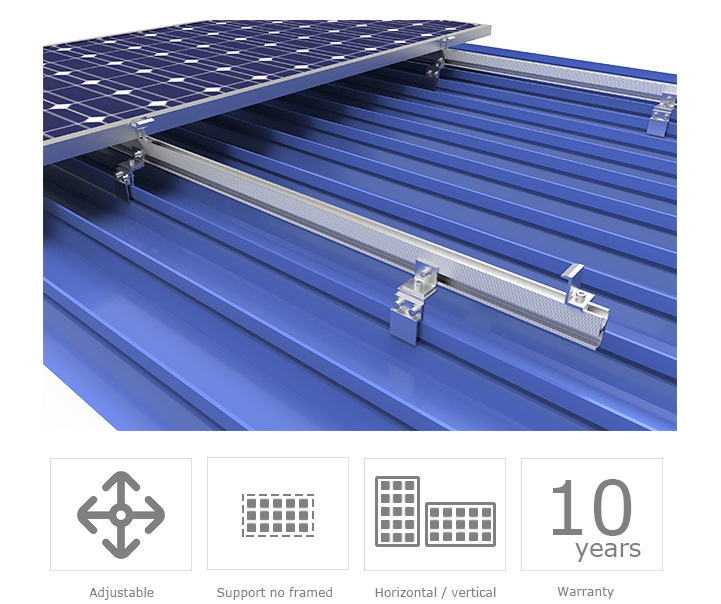

Advantages:


1.Allow installation at any point on the seam.

2.Can be adjusted even after solar accessories have been installed.

3.There are many kinds of metal roof bracket fixtures, suitable for various metal roof types

4.The fixture solar mounting structure is simple and easy to install.

5.High-quality after-sales service to solve your worries.

6.CORIGY SOLAR Solar-Kit is fully assembled ready to be installed.



Suitable for the following types of metal roof



Our L-Foot solar bracket design provides a low-cost solar mounting system that can install solar panels on SSMRs (Standing Seam Metal Roofs).

L-Foot solar bracket design

Racking Accessories

Roof Mount Bracket with Bolts,Washers

Solar Rails

L-foot with Bolts,Washers

End Clamp with Hex Socket Head Bolts M8,Toggles

Mid Clamp with Hex Socket Head Bolts M8,Toggles




More Similar Products:

According to different roof shapes, choose the matching photovoltaic standing seam clamp.

photovoltaic standing seam clamp
