Roof Mounting System

/Trapezoidal Metal Roof Solar Mount Racking System (with Rail) CPR-CS Series

Trapezoidal Metal Roof Solar Mount Racking System (with Rail) CPR-CS Series

CORIGY SOLAR Trapezoidal Metal Roof Solar Mounting System CPR-CS Series is made of aluminum alloy, and is applicable for solar power station installed on commercial and residential trapezoidal metal roofs. We offer a variety of clamp types to ensure a perfect connection to different trapezoidal metal roof sheets. This product is pre-assembled to reduce installation difficulties and time, and save construction costs,it is a solar panel mounting solution that is both economical, easy to use.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    CPR-CS
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

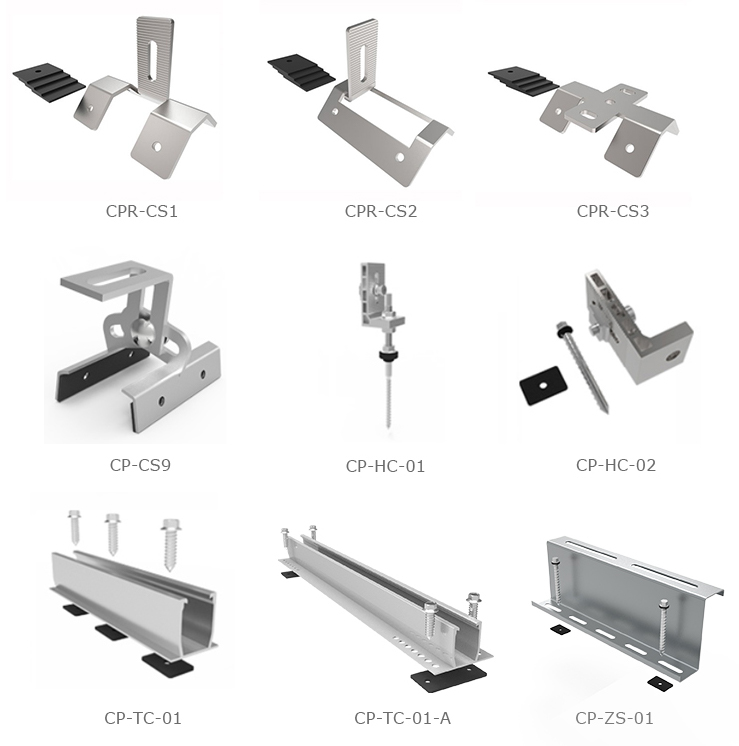

Trapezoidal Metal Roof Clamps(CPR-CS Series)




Product Name

Trapezoidal Metal Roof Solar Mounting Racking System (with Rail) CPR-CS Series

Mount Location

Sloped Roof

Mount Base

Trapezoidal Metal Roof

Mount Angle

0-15°

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years




Advantages:


1.Cost effective.
2.Waterproof for outdoor roof application.
3.6005-T5 aluminum made, anti-corrosion.
4.Suitable for trapezoid / corrugated roofing type.
5.Fast installation.



Suitable for trapezoidal metal roof

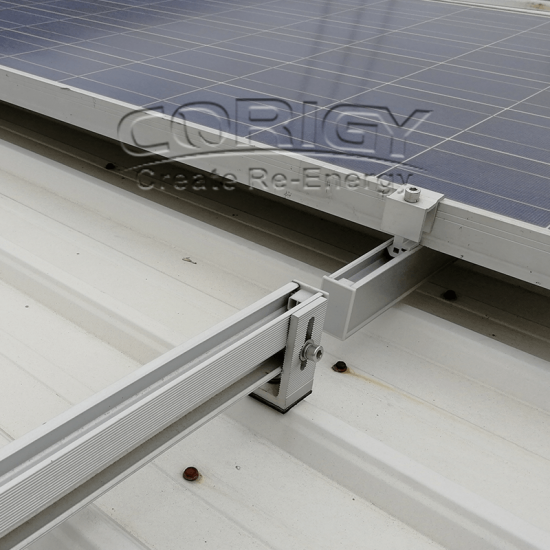

Fix the roof mounts on the trapezoidal metal roof first, and connect the clamp to solar mounting rail by bolt and toggle.

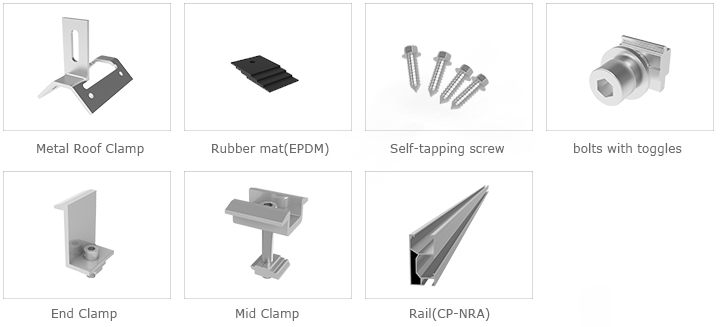

Roof mounting with Bolts,Washers,EPDM Washers,Self-tapping Screws


Solar rails

Racking Accessories

Bolt with Toggles


End Clamp with Hex Socket Head Bolts M8,Toggles



Mid Clamp with Hex Socket Head Bolts M8,Toggles







More Similar Products:

    More options of trapezoidal metal roof rack mounting system.
