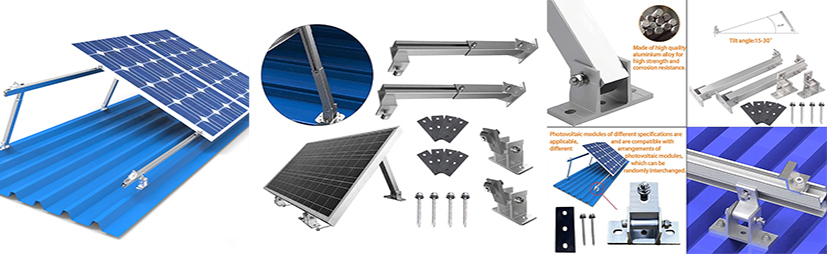

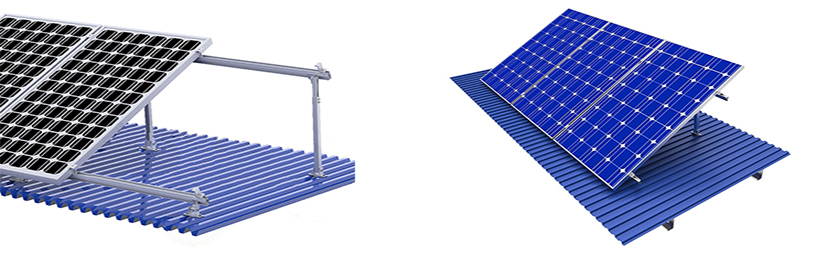

DIY Adjustable Solar Panel Tilt Mounting Bracket For Flat Rooftop

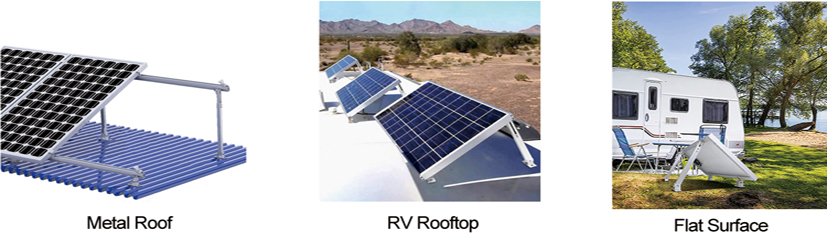

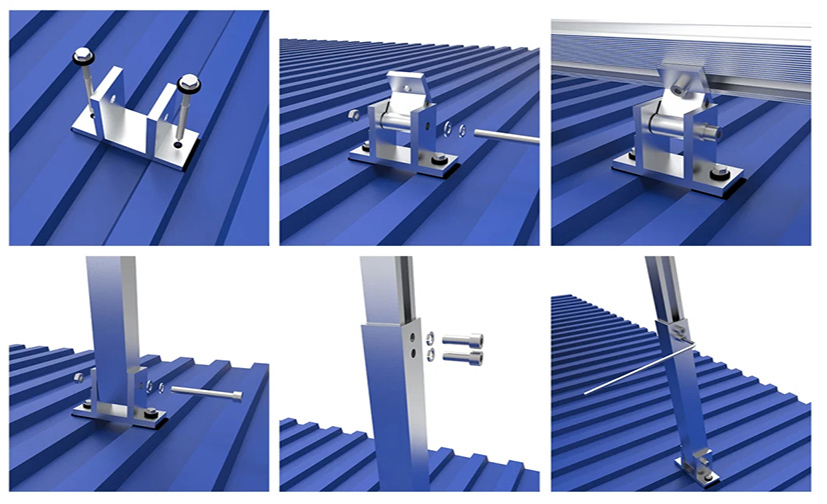

This solar adjustable mounting bracket will support off-grid systems. This solar adjustable mounting bracket is designed to allow adjustment of the panel for optimum performance. The tilt mount can be used on any flat surface, provided that the correct fastening techniques are applied.
  • Brand:

    CORIGY SOLAR
  • Item NO.:

    FRM-003
  • Payment:

    T/T, L/C, O/A, D/P
  • Product Origin:

    CHINA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    Depends on project time or receipt time
  • Product Detail

DIY Adjustable Solar Panel Tilt Mounti Bracket For Flat Rooftop














Corigy Solar has been focusing on manufacturing and design solar mounting bracket for more than 10 years. Corigy's products have been installed and used in more than 30 countries and regions, with a total installed capacity of more than 8GW. After the construction is completed, all projects are completed by the official acceptance team, and they are currently officially put into operation.


In terms of selection, Corigy is based on the principle of highest quality. The bracket uses high-quality main materials high-grade anode aluminum Al6500-T5. The surface uses anode oxidation 12-15mic. Excellent anti-corrosive rust and anti-rust performance ensures its 30-year service life. At the same time, the characteristics of aluminum lightweight reduces the weight of the roof and make it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity is 1.4kn/㎡.


All bracket solutions of Corigy are calculated based on the live conditions environment. Corigy's advanced technical team conducted a force analysis of the structure of the building, combined with the layout of  the bracket and photovoltaic components to verify the various feasible bracket installation solutions to determine the most efficient, convenient, safe and reliable solution.
